SRTMap
- 产品描述
-
- Commodity name: SRTMap
For SBRT/SRS Verification
Ion chambers cover the entire three-dimensional space, achieving precise 3D dose verification for SBRT/SRS

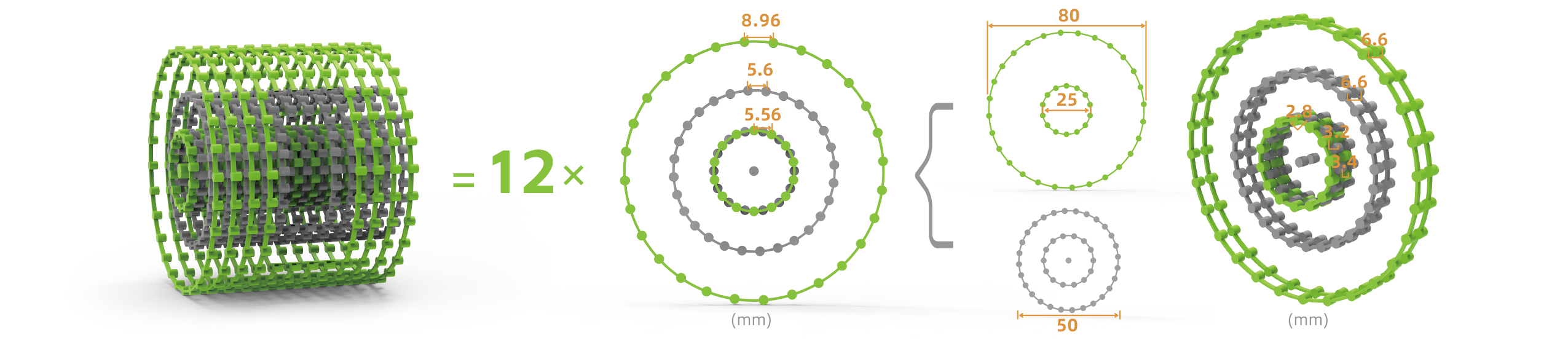

· With 1020 ion chambers arranged in 3D within the SRTMap, spatial dose distributions are displayed intuitively.
· Each ion chamber has a sensitive volume of 0.01356 cc, offering high detection density and resolution to better resolve details in high-dose regions.
· No angle response, no energy response, no detection attenuation. Denser spatial distribution delivers more precise measurement results.
SRTMap supports multi-target verification, making it suitable for complex treatment plans.
SRTMap has good measurement accuracy and is suitable for QA verification of small field sizes.
User-friendly design ensures a smooth and pleasant user experience
· The LCD screen displays temperature, air pressure and angle in real time.
· Wi-Fi data transmission. No need for complicated wiring.
· Equipped with RayMap for 3D dose verification.
· Optional FilmDose for film measurement and analysis.Technical Parameters
SRTMap
Detector Typeionization chamberDimensions(D×H)Φ165mm×234mmDetector Quantity1,020Field Size80mm×80mmSensitive Volume0.01356CC
Repeatability≤±0.5%Detector Volume(R×H)1.2mm×3.0mm
Non-linearity
≤±0.5%Weight3.16kg
SRTPhantom
Dimensions(L×W×H)443mm×264mm×254mmWeight5.7kgMaterialABS
