2DMap

Product Details

2DMap

  • 产品描述
    • Commodity name: 2DMap

    For 2D Verification

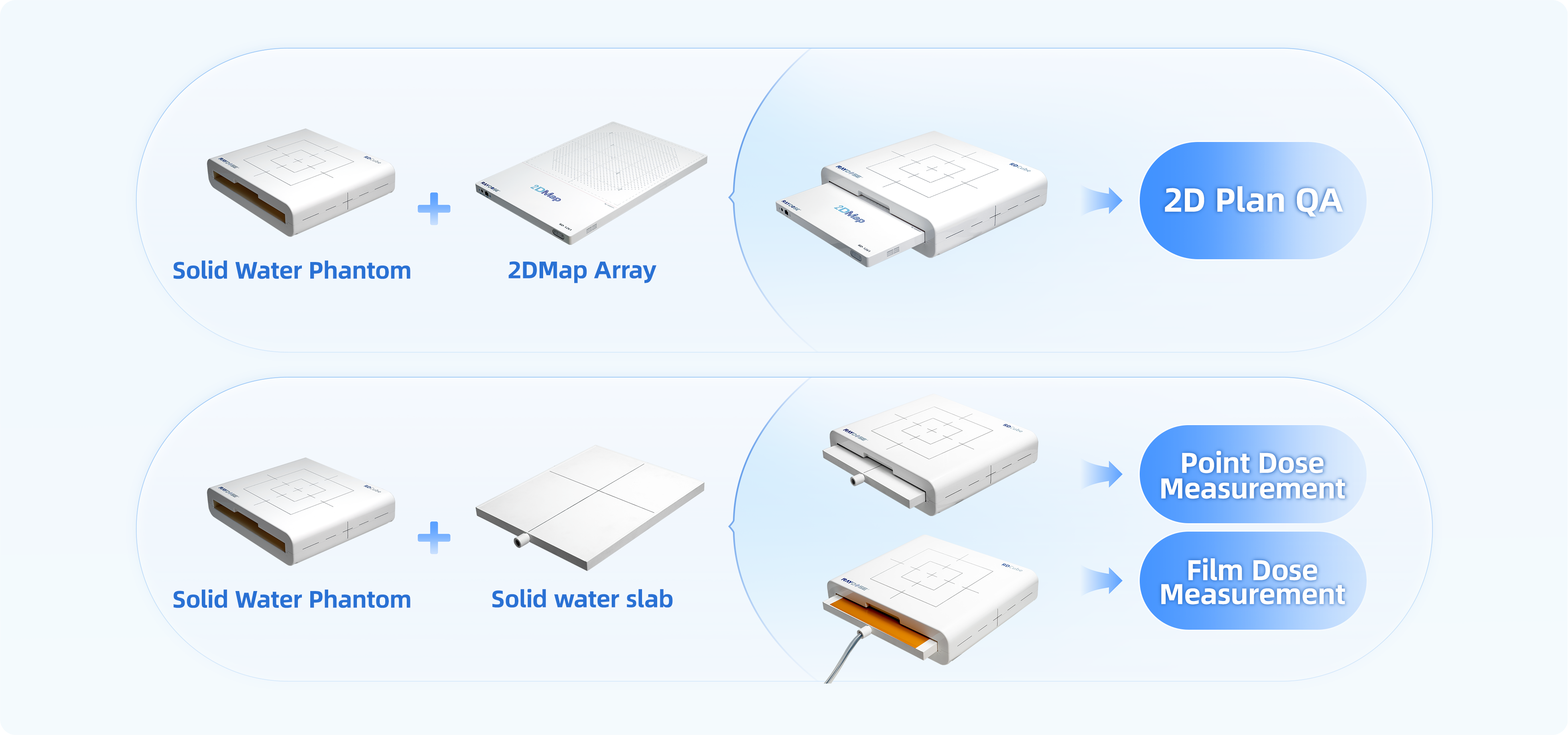

    Supports 2D plan verification, point dose and film dose measurement





    Engineered with a unique structure, 2DMap allows accurate multi-angle beam analysis.

    • · Its homogeneous material design supports direct irradiation from 0° and 180°.
    •  · RayMap further extends angular compatibility through algorithm-based correction, enabling use with 90° and 270° beam angles.



    Supported plan types: IMRT, VMAT, RapidARC, etc







    Supports analysis of flatness and symmetry







    Technical Parameters

    2DMap Array





    Detector Type
    Detector Quantity
    Detector Volume(R×H)
    Ion chamber
    1,261
    2.8mm×4.8mm (0.118cm³)
    Nominal Sensitivity
    Detector Spacing
    Repeatability
    3.6nC/Gy ± 0.2nC/Gy
    7.07mm(Min)
    ≤±0.5%
    Non-linearity
    Field Size
    Dimensions(L×W×H)
    ≤±0.5%
    26cm×26cm
    441mm×296mm×20mm
    Weight

    3.6kg


    RD Cube

    Dimensions(L×W×H)
    Material
    		Weight
    357.1mm×320mm×81.2mm
    		ABS7.2kg
