The surface is printed with guide lines to assist in positioning and measurement
Product Details
ArcMap
- 产品描述
-
- Commodity name: ArcMap
For 3D Verification
Application
· Supports RT techniques, including IMRT, VMAT, IGRT, RapidArc, etc.
· Supports LINAC models, including Tomo, Halcyon, Edge, VitalBeam, VersaHD, Infinity, Synergy, SHINVA XHA2200, etc.
· Compatible with TPS such as Eclipse, Monaco, Pinnacle, Raystation, etc.
The device features a hollow internal structure, allowing flexible integration with various plug-ins.
Equipped with solid water and ion chamber plug-ins, supporting 3D dose verification and point dose measurements, respectively.
The LCD screen can display information such as angle, temperature, and air pressure in real-time
Supports full 360° irradiation with excellent angular response consistency.

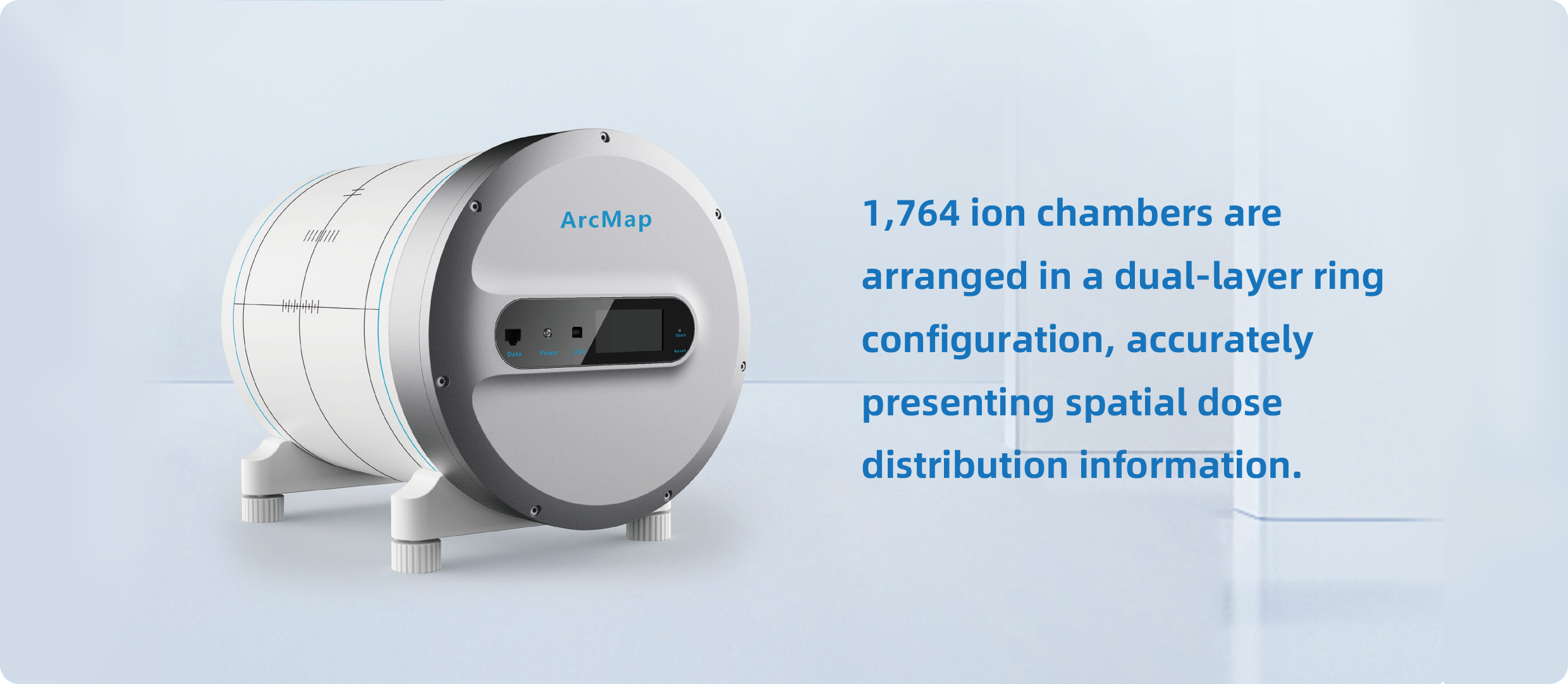

The ionization chambers are arranged in a staggered dual-layer design, effectively improving detection resolution
The software supports two verification:
Phantom-based 3D dose verification
· Displays the 3D dose distribution within the phantom.
CT-based 3D dose verification
· Displays the 3D dose distribution reconstructed onto the patient's CT image.
Technical ParametersDetector Type型Detector QuantityDetector VolumeIon chamber1,764
0.094cc
Nominal SensitivityWeightRepeatability3.6nc/Gy±0.2nc/Gy18.5kg≤±0.5%
Non-linearityDimensions(L×W×H)Field Size≤±0.5%
373.4mm×309mm×280mm
21cm×21cm
Insert Cavity RadiusInner Ring RadiusOuter Ring Radius6.7cm
9.5cm
10.5cm
MaterialDetector Volume(R×H)PMMA
2.5mm×4.8mm
