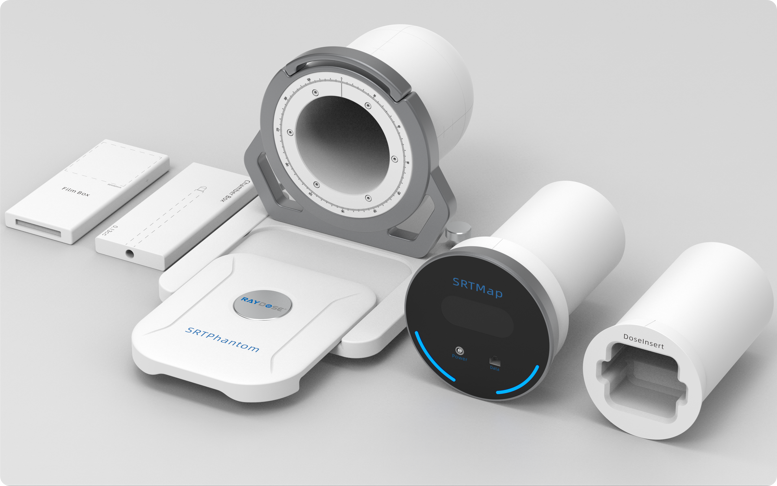

SRTMap

End-to-End Full Process Verification for Stereotactic Radiotherapy

SRTMap is a comprehensive, end-to-end verification system specifically designed for SRS/SBRT Patient QA. It covers the entire workflow from CT positioning and treatment planning to treatment delivery, ensuring precision in dose and position at every step.

Compatible with

Machine:

Linear accelerators (photon)

Gamma Knife radiosurgery systems

Other mainstream radiotherapy devices
Treatment techniques::

SRS (Stereotactic Radiosurgery)

SBRT (Stereotactic Body Radiotherapy)

Measurements::

Volumetric 3D dose verification (with dedicated plug-ins)

Point-dose

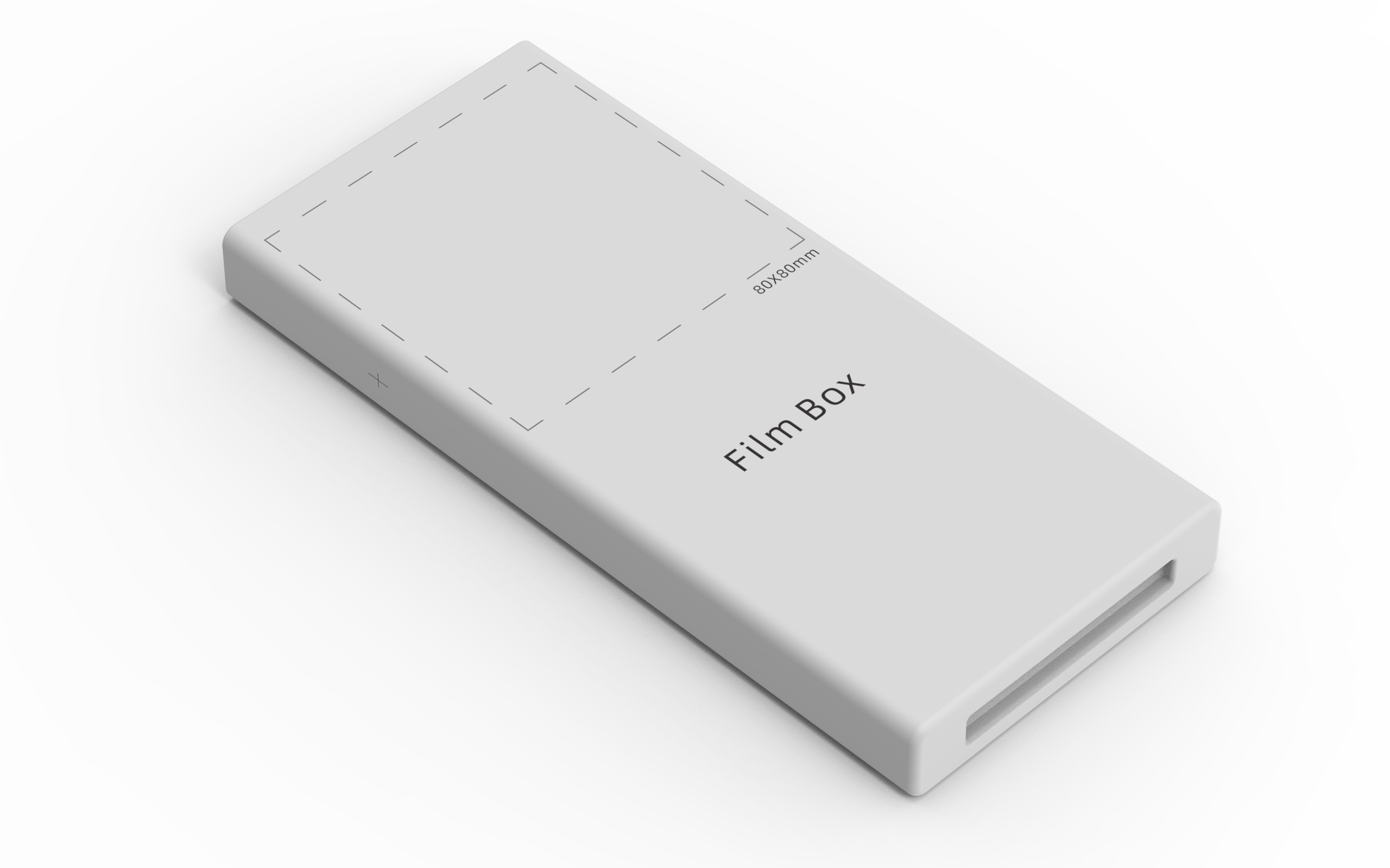

Film dosimetry

Video

Key Features

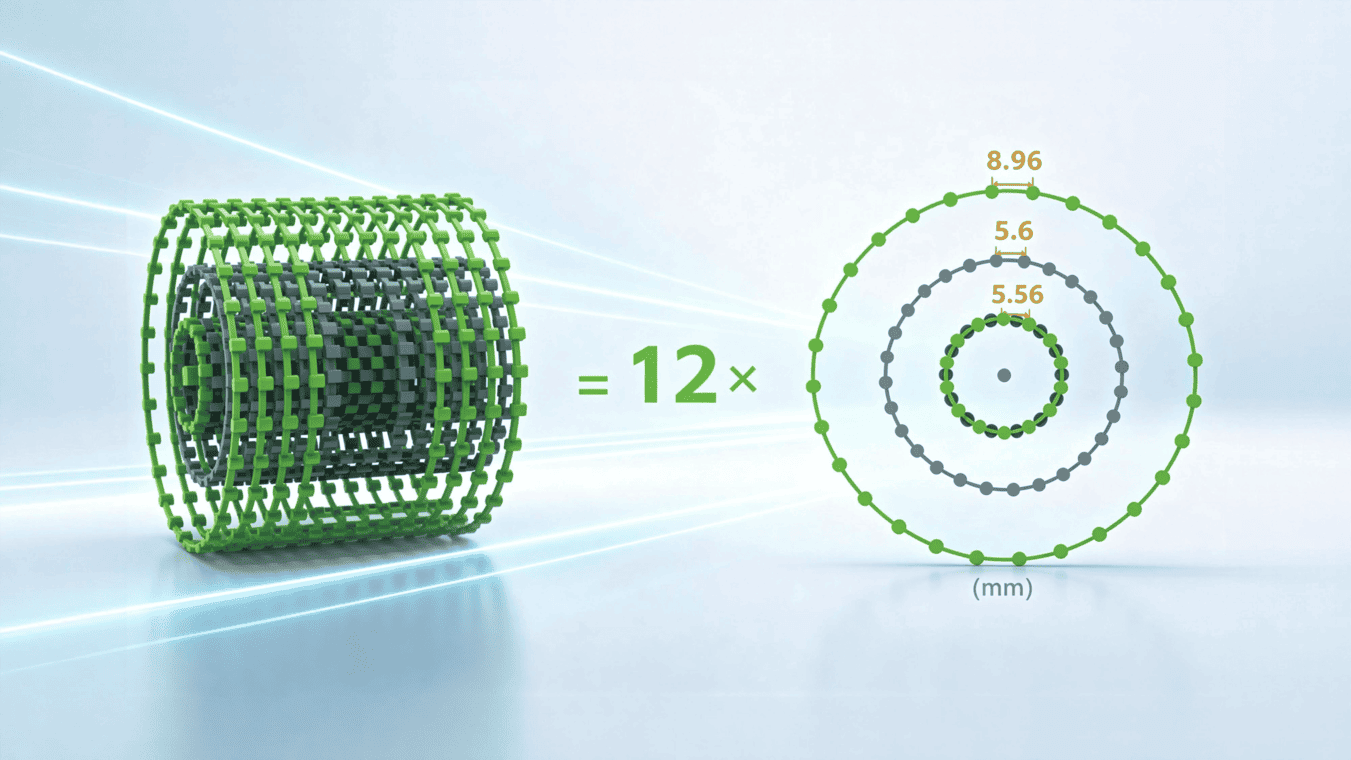

“4+1” 3D Spatial Design

4 layers of ionization chambers combined with 1 central line layout fully cover both high- and low-dose regions in 3D space, enabling precise, full-volume dose-distribution measurement.

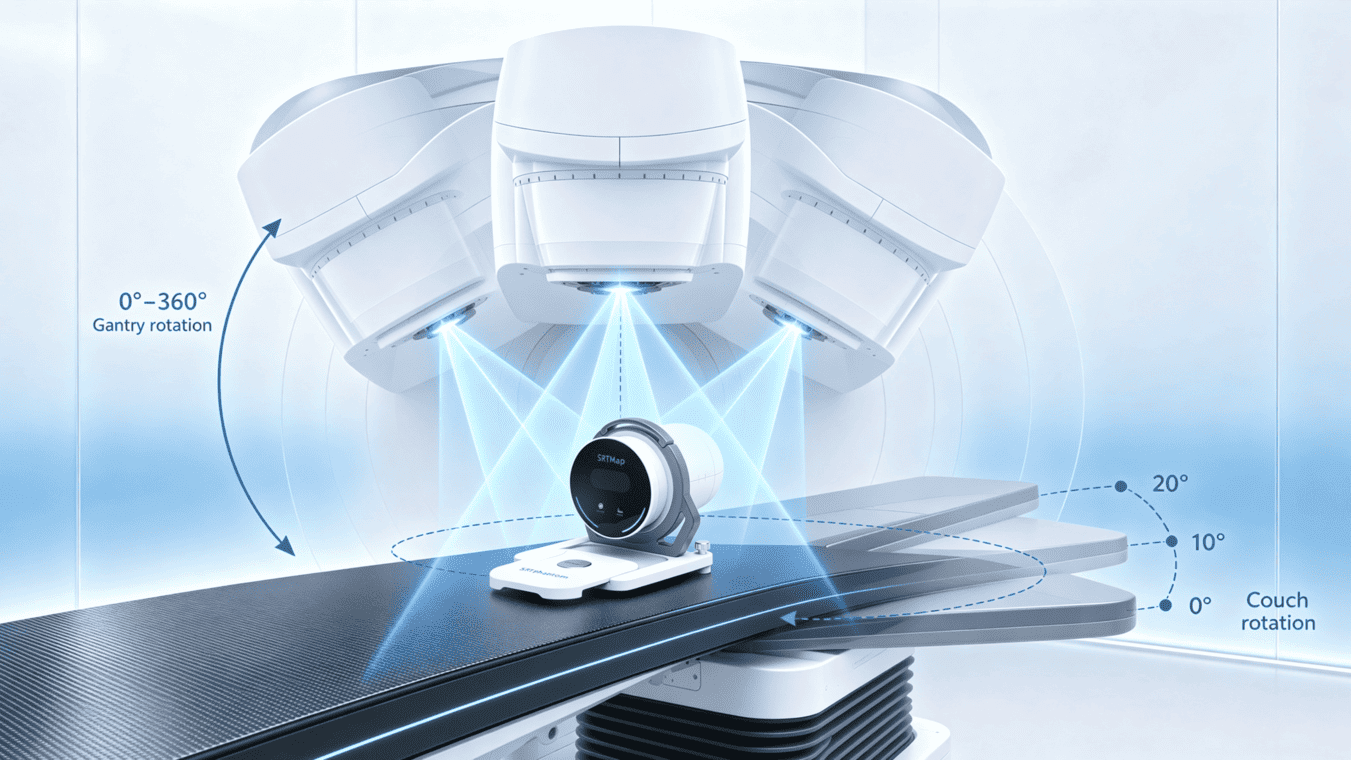

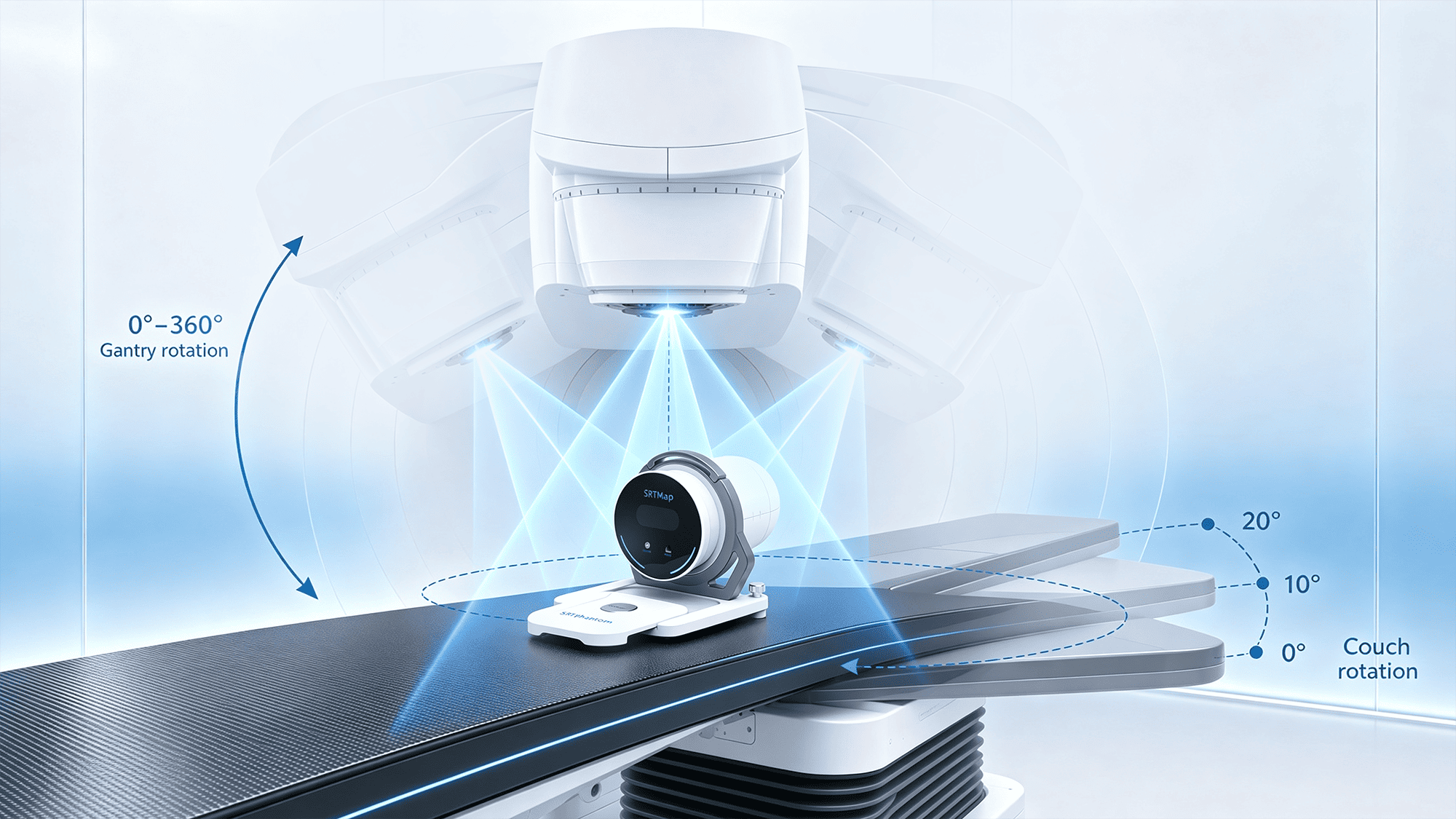

Coplanar & Non-Coplanar Verification

Supports both coplanar and non-coplanar verification to meet diverse treatment-technique requirements and flexibly adapt to different clinical applications.

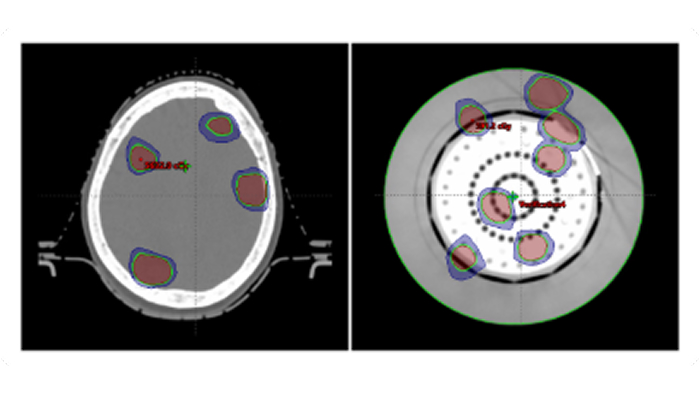

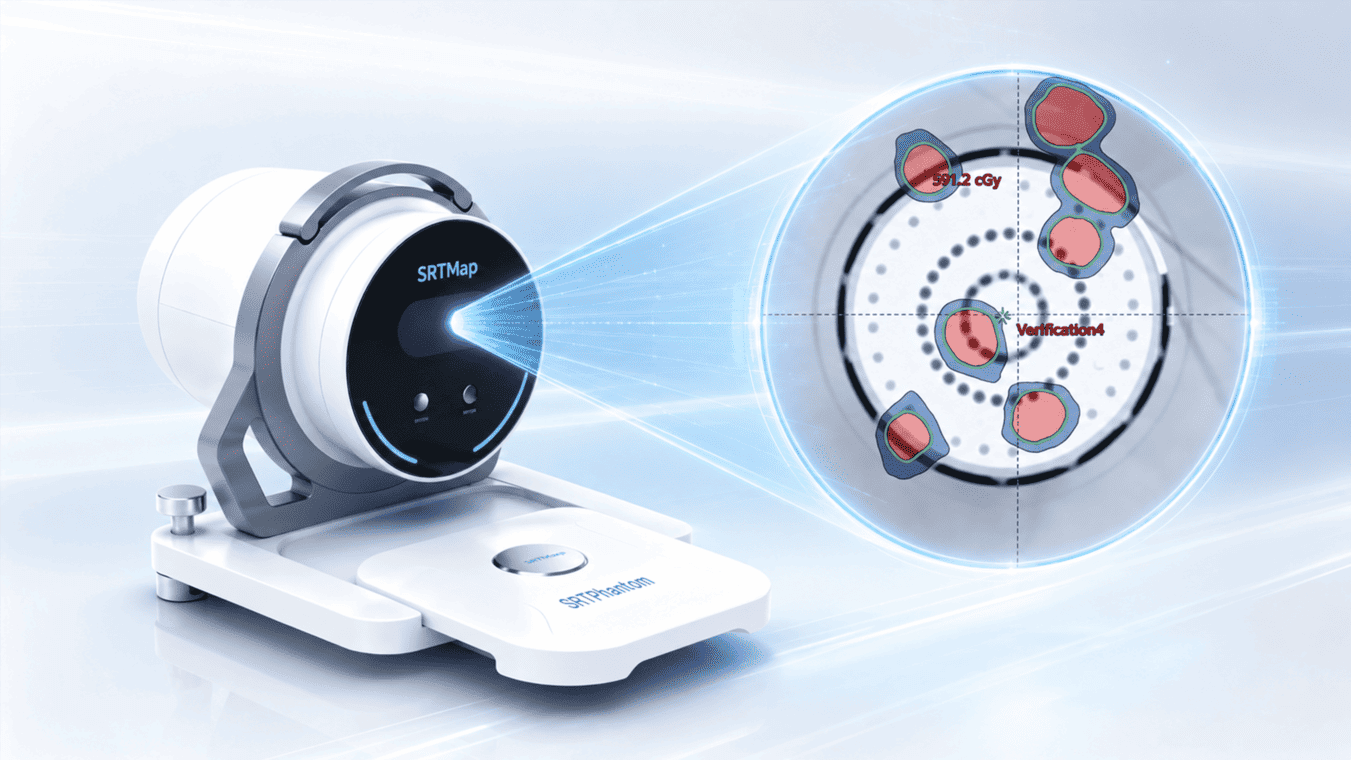

Multi-Target Verification

Overcomes the limitations of single-plane measurement. For multi-target SBRT, it effectively prevents missed-dose regions, improving the completeness and accuracy of verification.

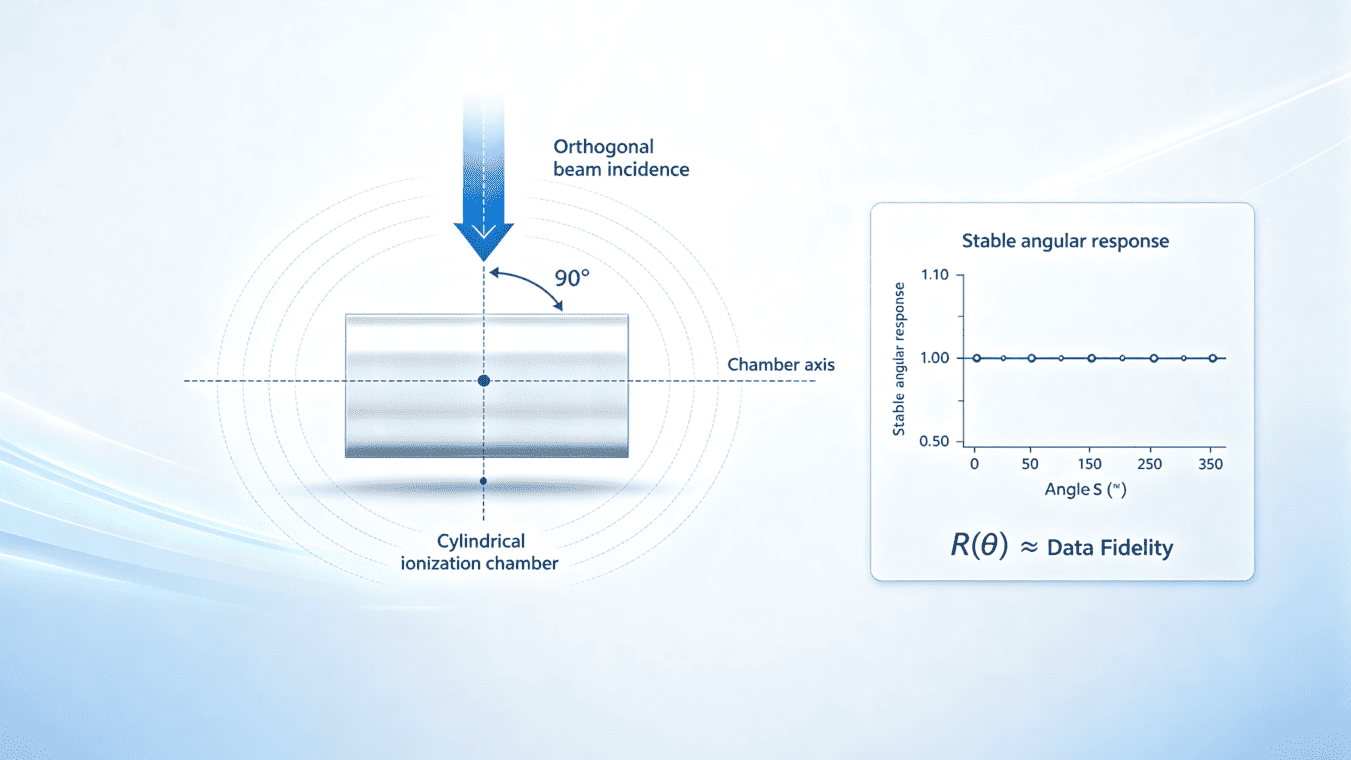

No Angular Correction Required

The cylindrical ionization chambers naturally align with the gantry rotation, eliminating the need for additional detector angular-response correction, simplifying operation while maintaining data fidelity.
