2DMap

2D IMRT/VMAT Dose Verification Detector Array

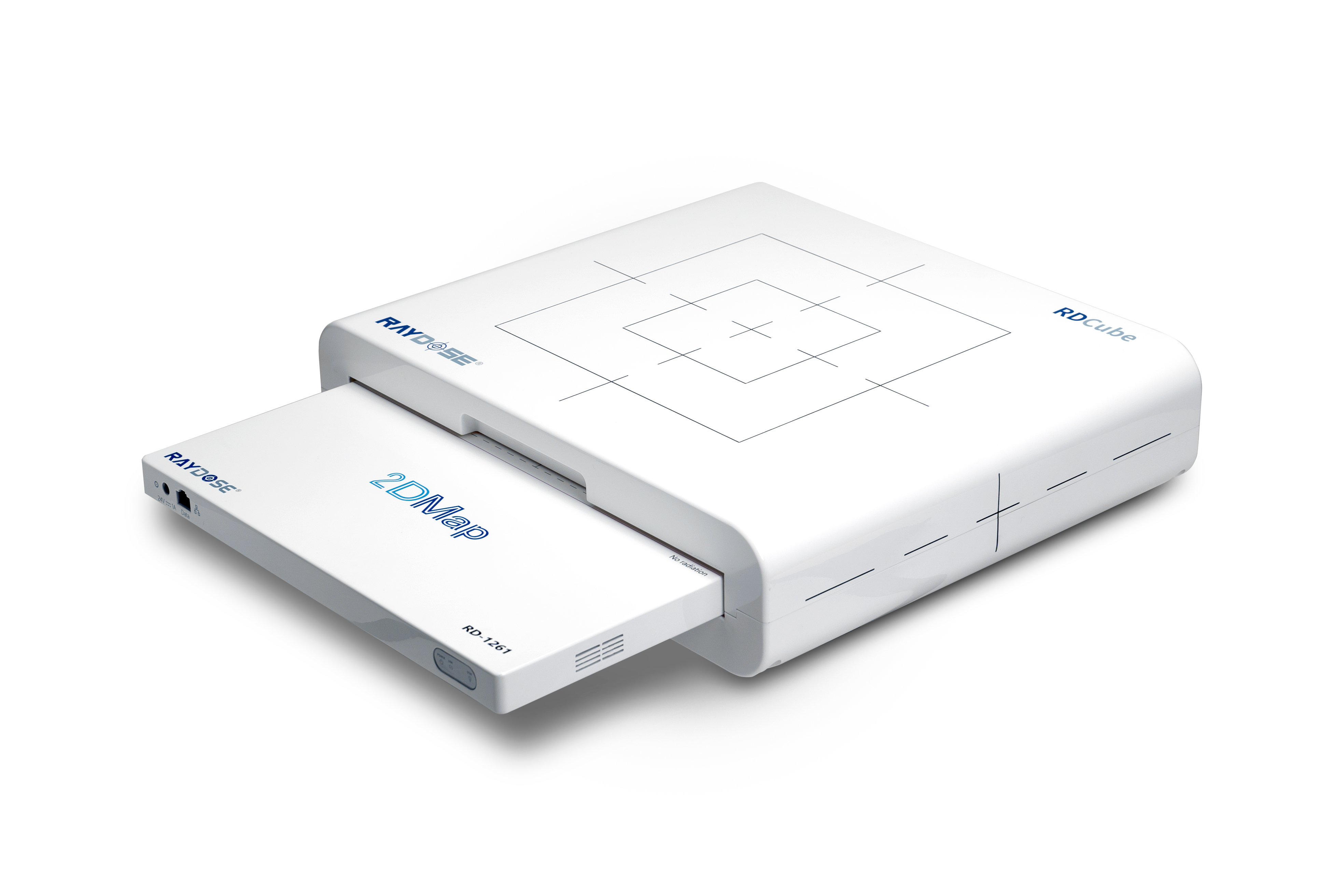

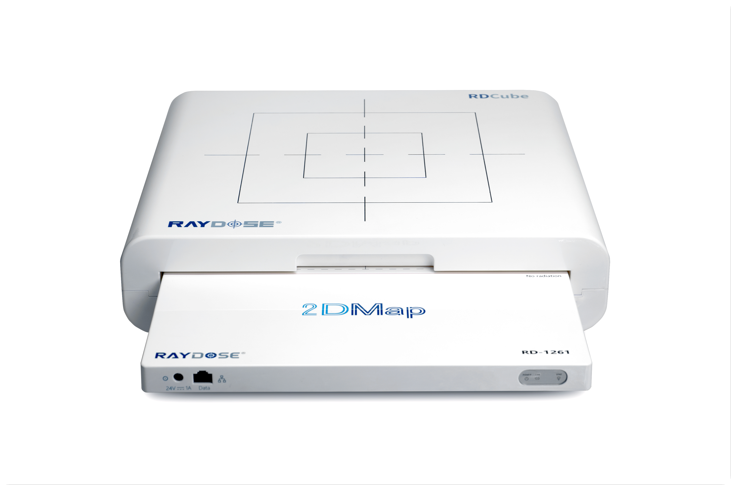

The 2DMap consists of 1,261 air ionization chambers covering a 26 × 26 cm measurement area. Paired with RayMap software, it enables rapid acquisition of two-dimensional dose distributions and gamma analysis. It supports importing TPS (DICOM) plans for comparison with measurement results, facilitating pre-treatment quality assurance for IMRT/VMAT to verify the accuracy and safety of plan execution.

Compatible with

Machine:

LINAC
Treatment techniques:

IMRT

VMAT
Beams:

Photon beams (FF & FFF selectable)

Electron beams

TPS formats:

DICOM RT Plan / RT Dose (DICOM 3.0)

Eclipse

Monaco

Pinnacle
Software / Connectivity:

RayMap

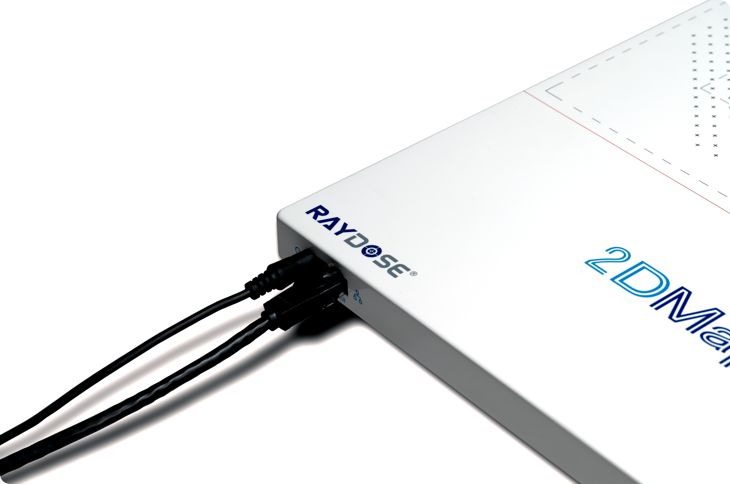

Ethernet connection to PC

Video

Key Features

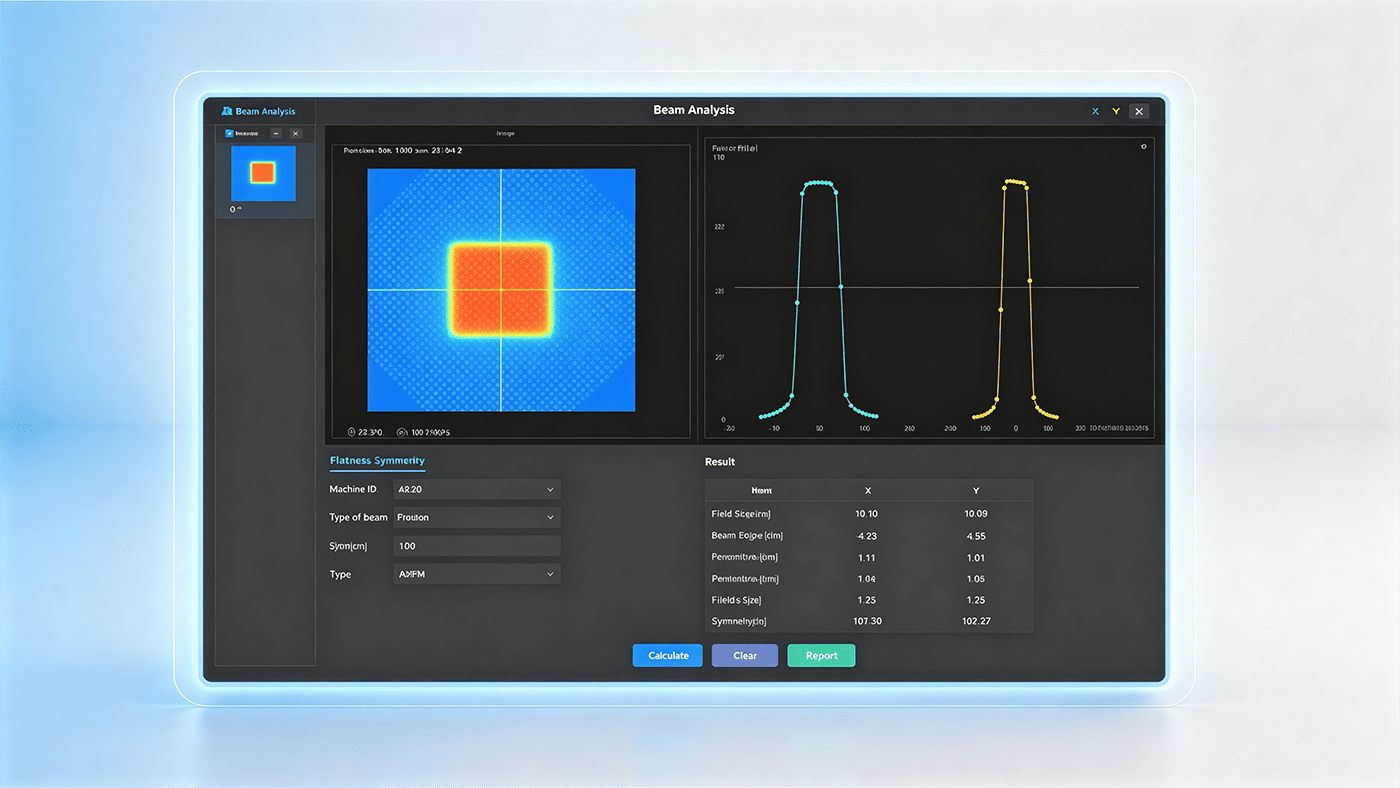

Multi-Modality QA Coverage

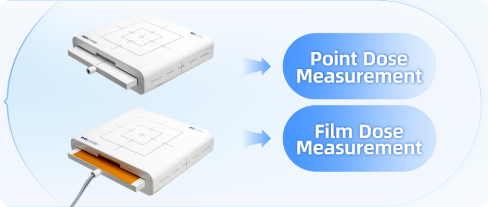

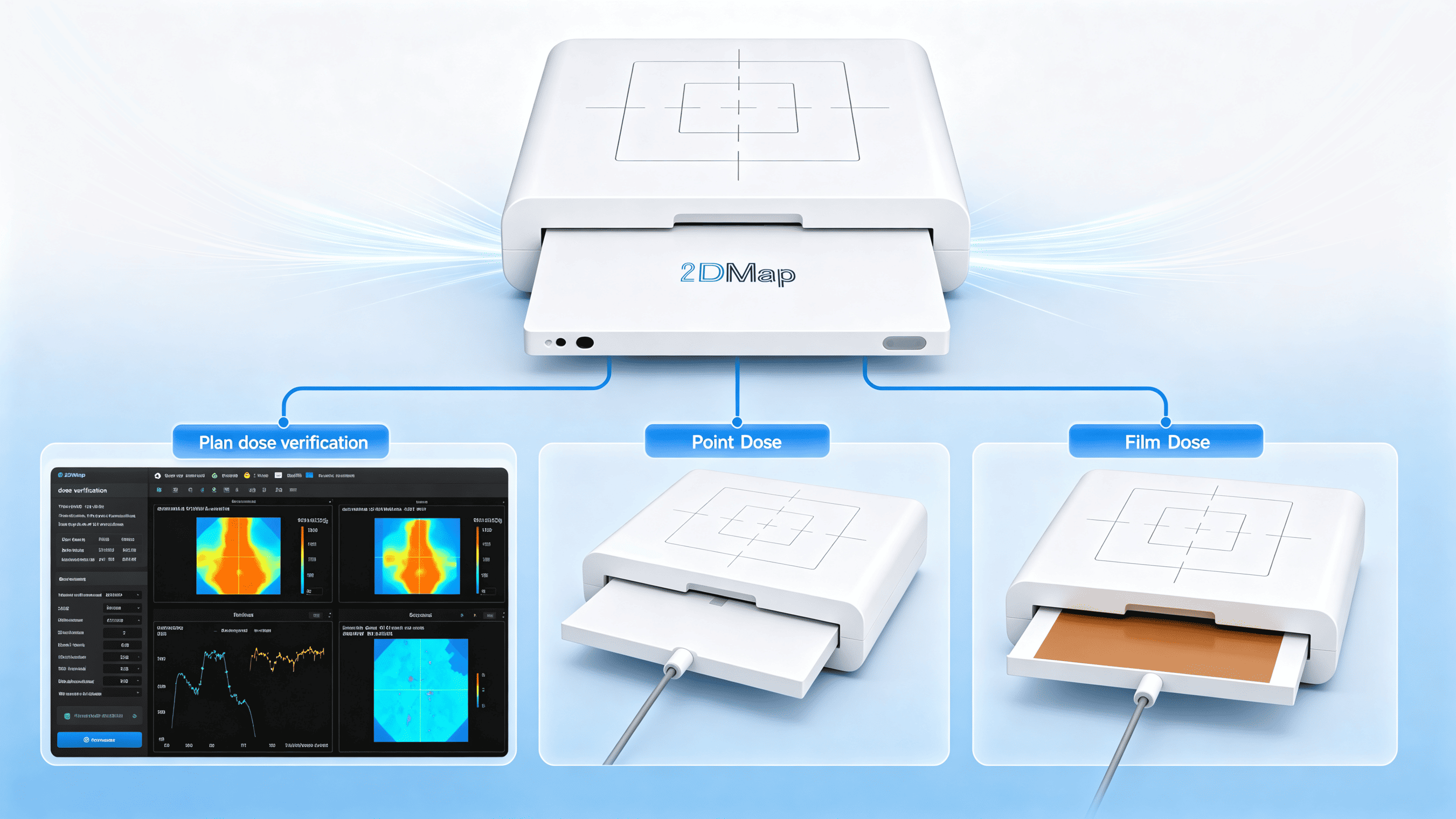

Supports 2D plan verification, point-dose, and film-dose measurement.

Multi-Angle Beam Measurement

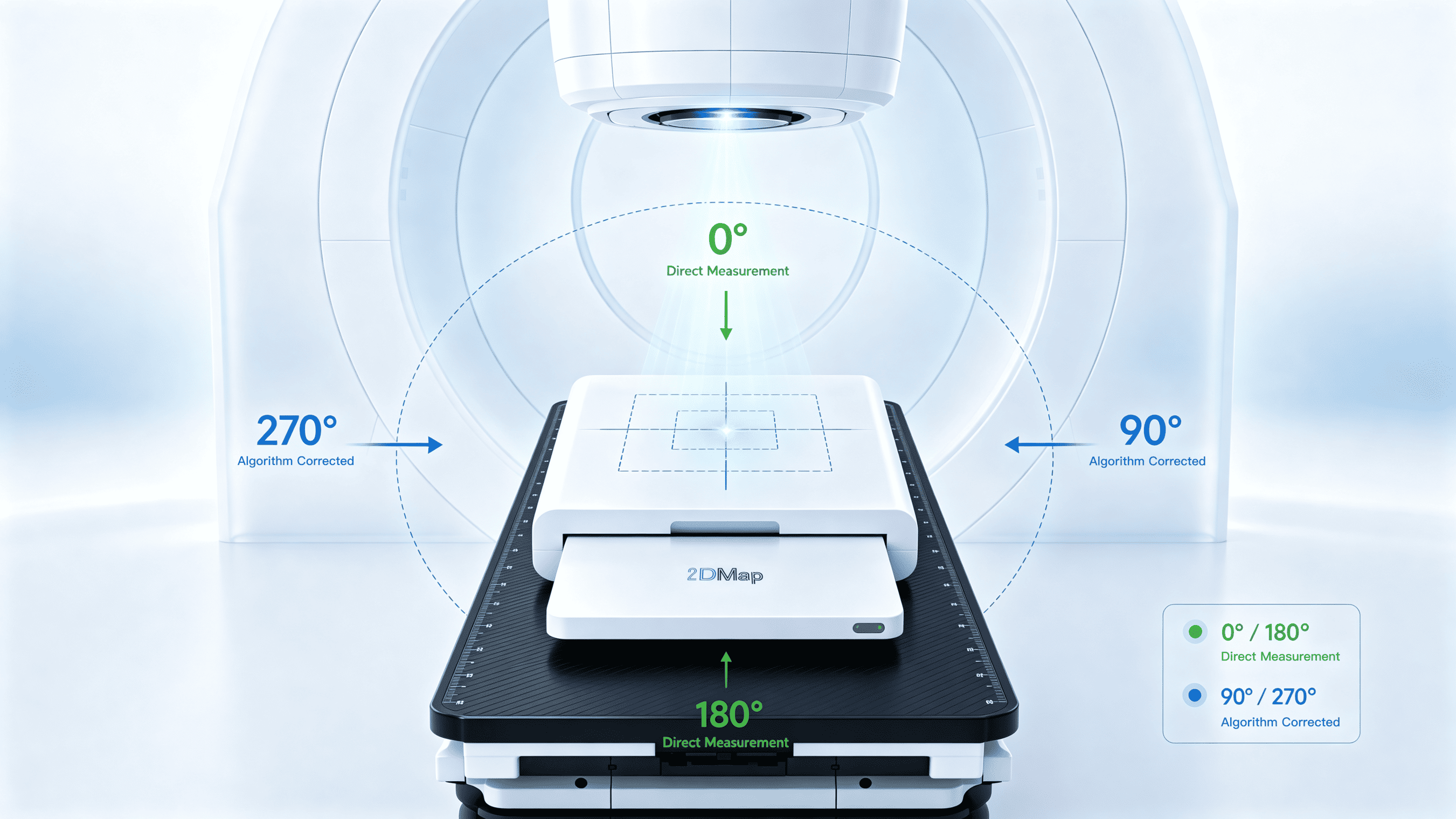

• Homogeneous material design supports direct irradiation at 0° and 180°.

• RayMap extends angular compatibility via algorithm-based correction, enabling irradiation at 90° and 270°.
