ArcMap
3D IMRT/VMAT Dose Verification Detector Array

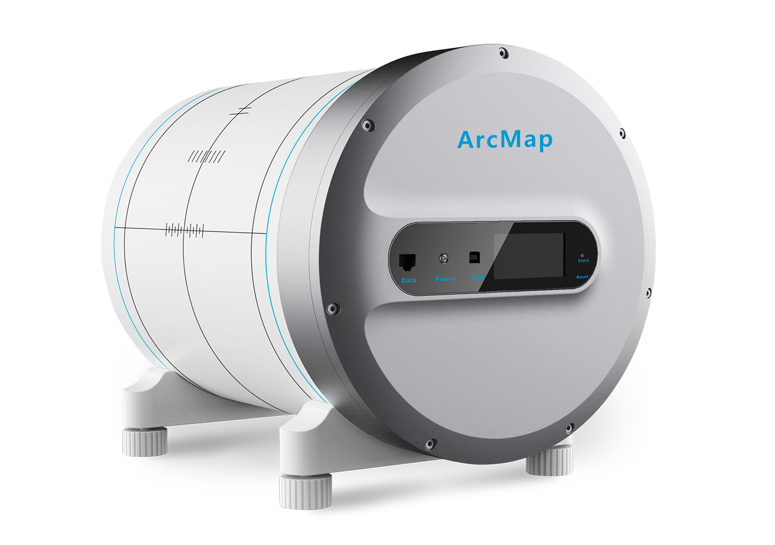

ArcMap is a dual-ring detector array with 1,764 ionization chambers spread across a 21 × 21 cm field. Paired with RayMap, it imports DICOM RT Plan/RT Dose and compares measured dose to the TPS plan to verify IMRT/VMAT delivery. Gigabit Ethernet links the array to PC, and the front LCD shows gantry/collimator angle and IP status.
Compatible with
-
Machine:
- LINAC
-
Treatment techniques:
- IMRT
- VMAT
-
Beams:
- Photon beams (FF & FFF selectable)
- Electron beams
-
TPS formats:
- DICOM RT Plan / RT Dose (DICOM 3.0)
- Eclipse
- Monaco
- Pinnacle
-
Software / Connectivity:
- RayMap
- Ethernet connection to PC
Video
Key Features
Dual-Ring, High Density Array

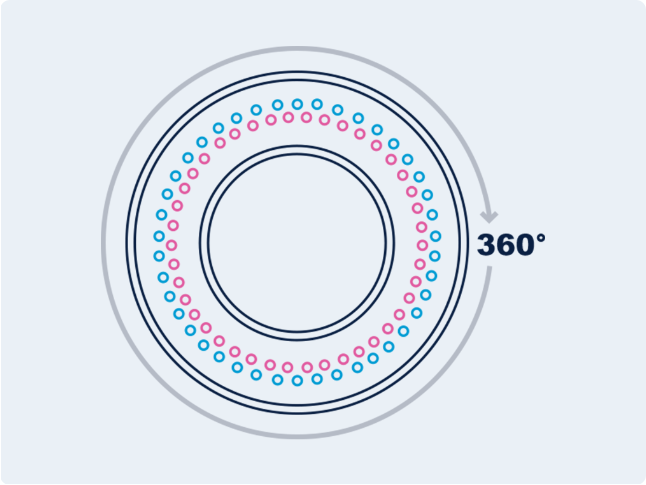

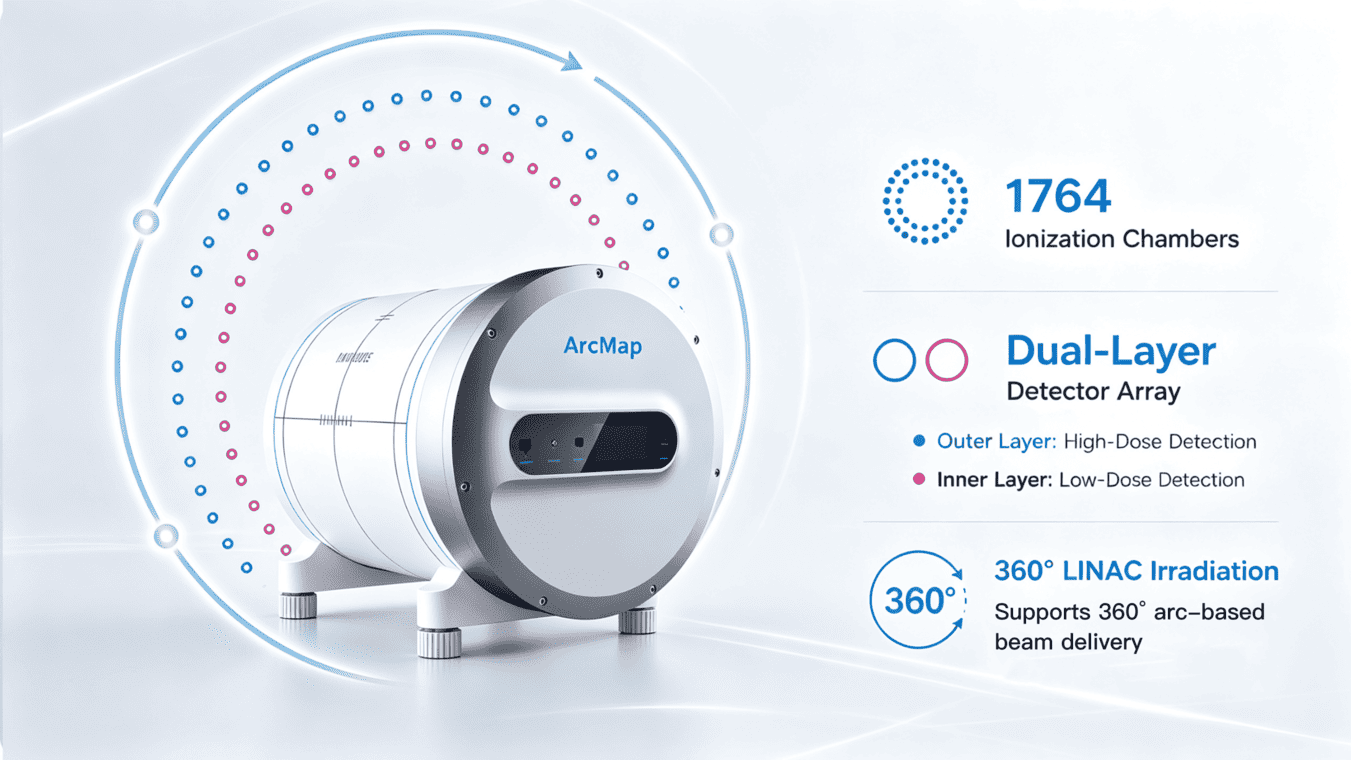

1764 Ionization chambers are arranged in a staggered dual-layer design, supporting full 360°irradiation with excellent angular response consistency.
Interchangeble Insert

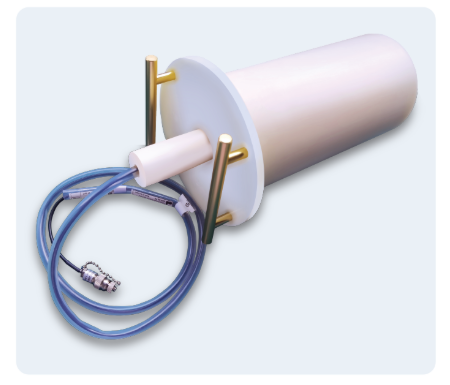

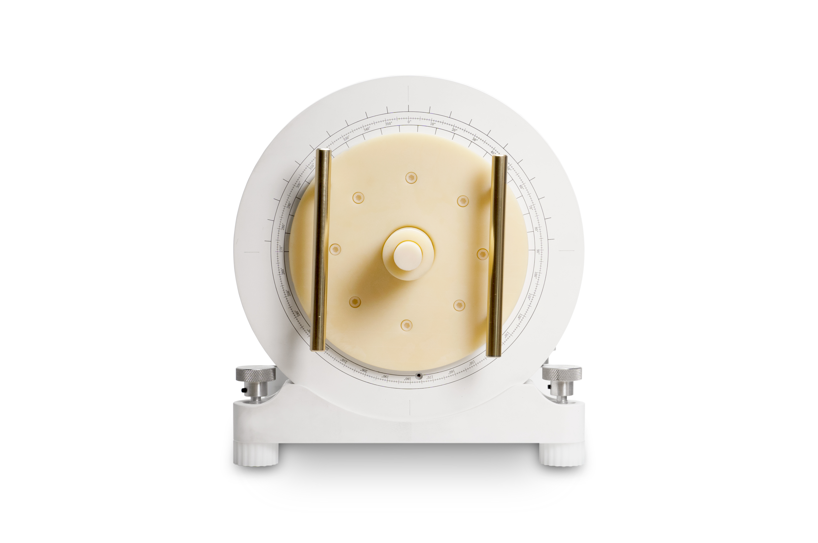

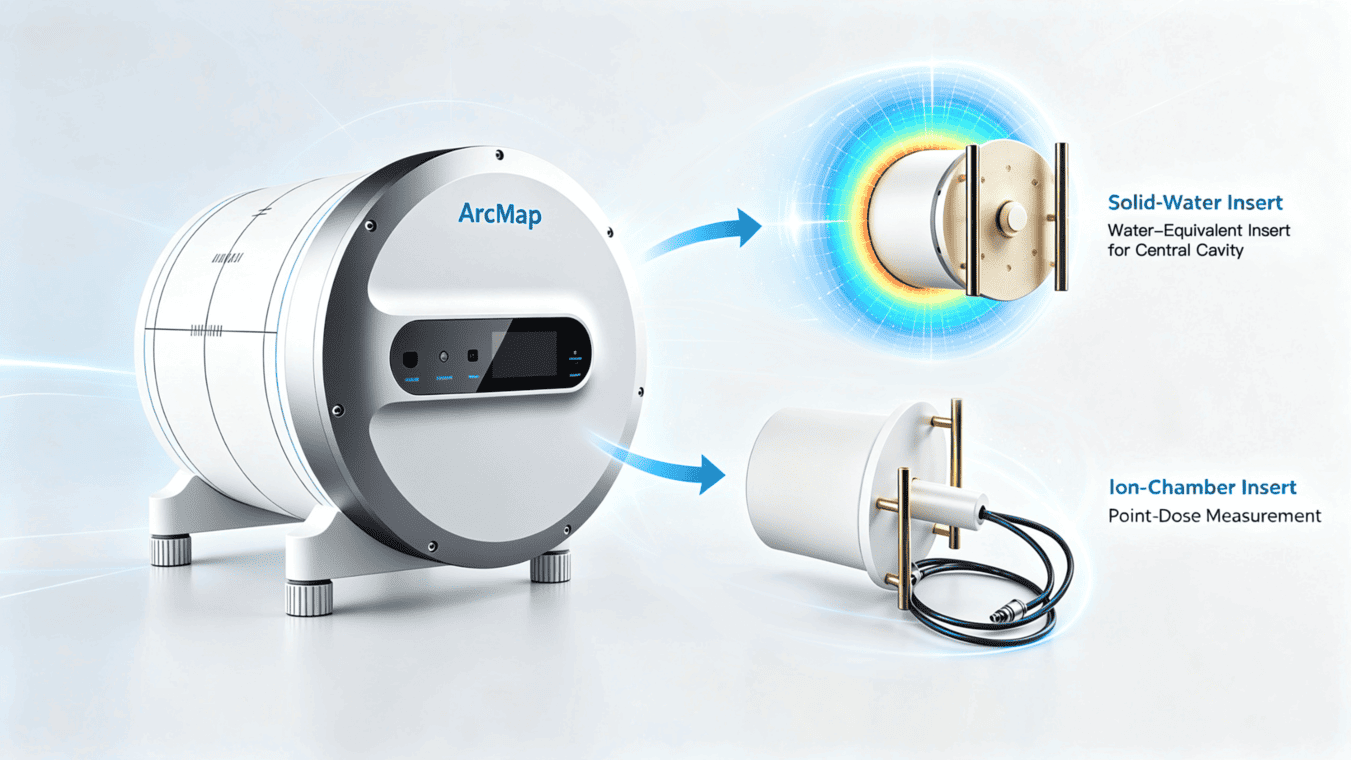

Hollow interior accepts Solid-Water & Ion-Chamber inserts to support phantom 3D dose checks and point-dose measurement.
Two Verification Workflows in RayMap

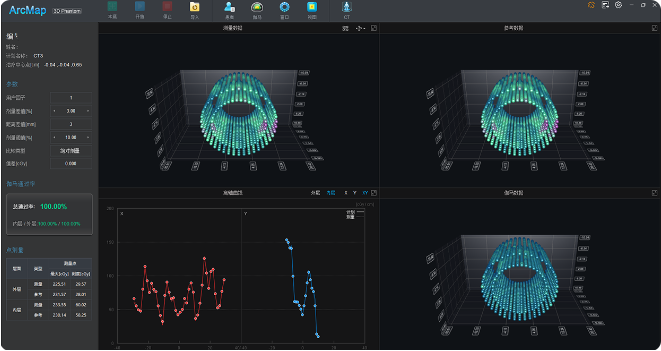

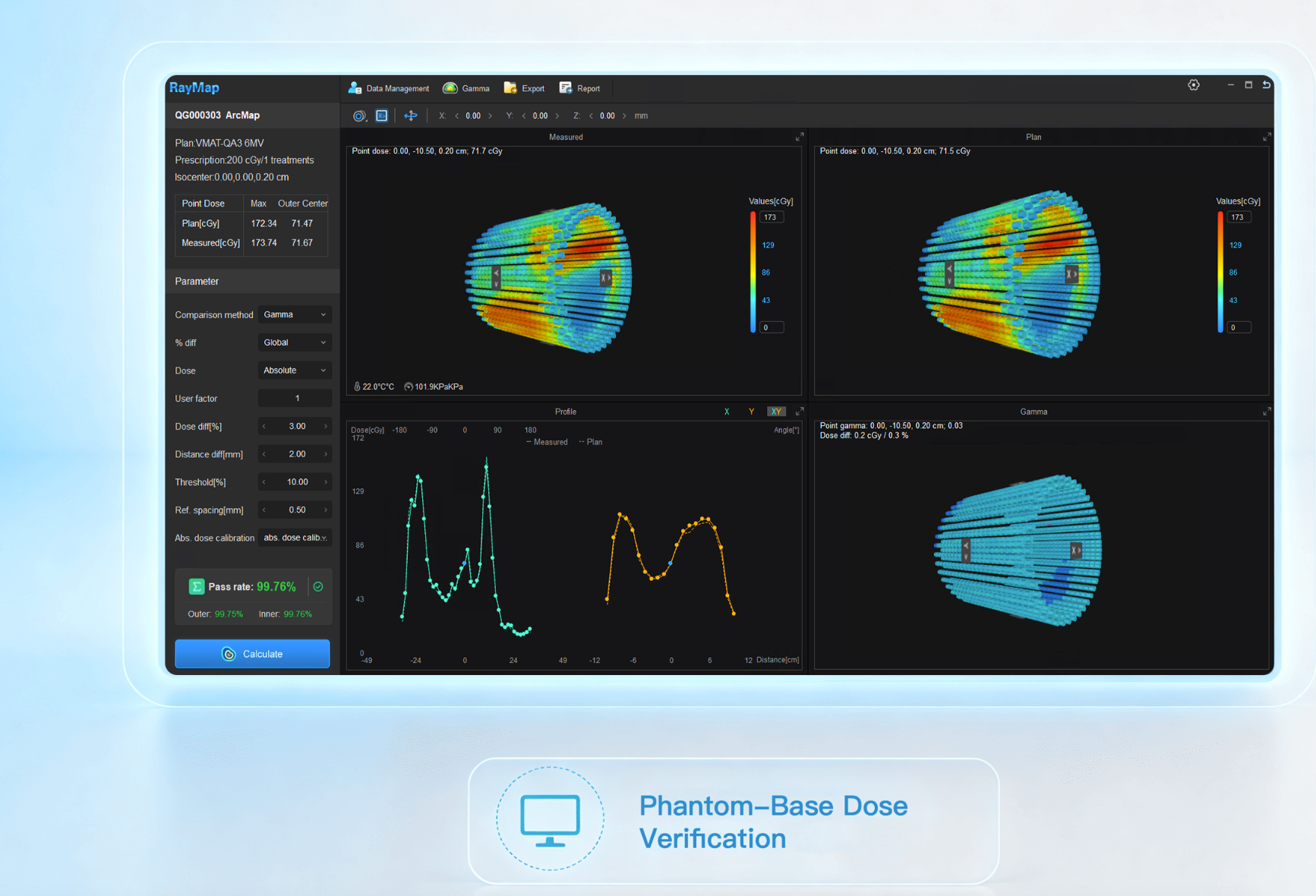

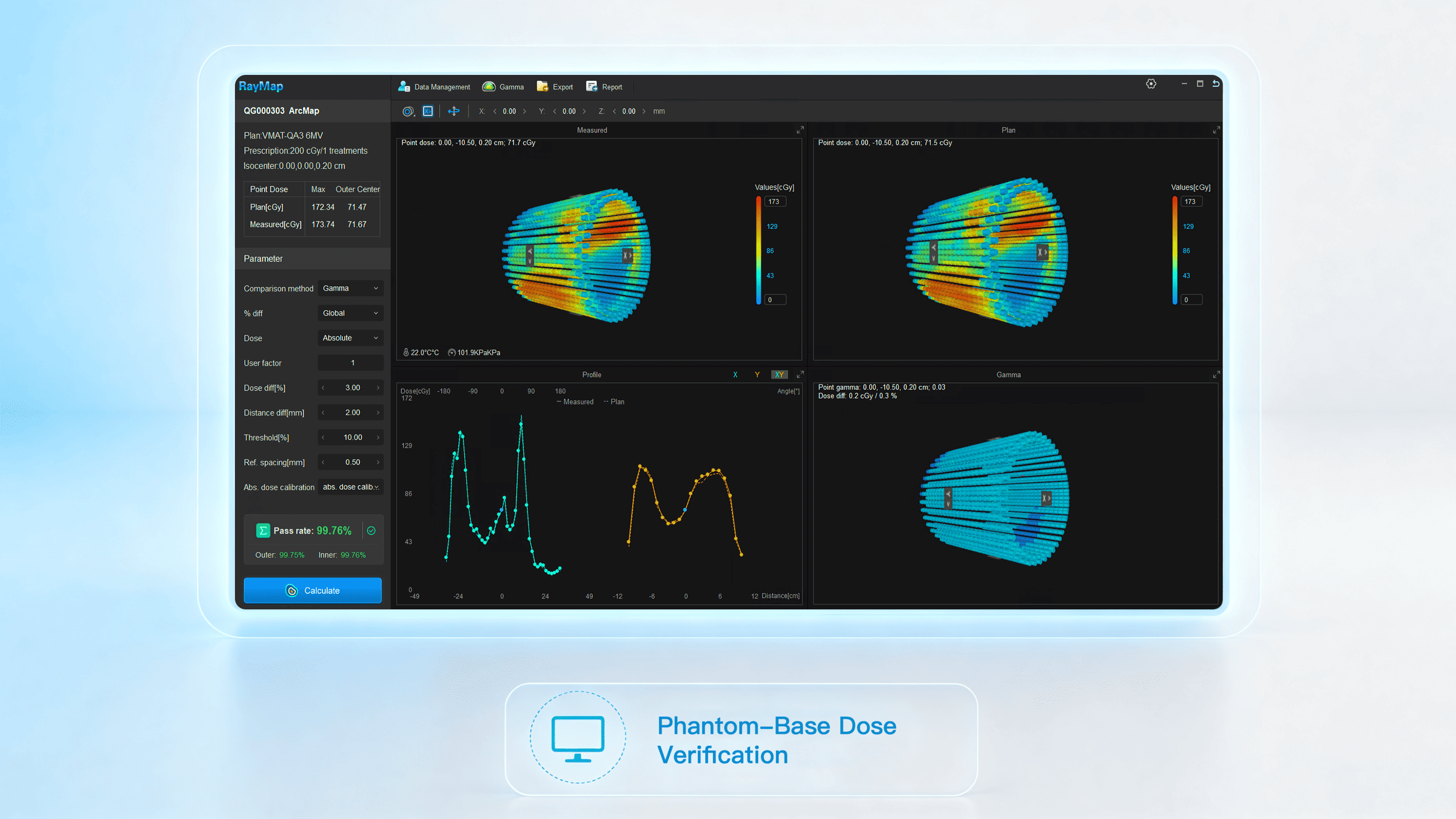

RayMap supports Phantom-based 3D dose verification, displaying the 3D dose distribution within the phantom;

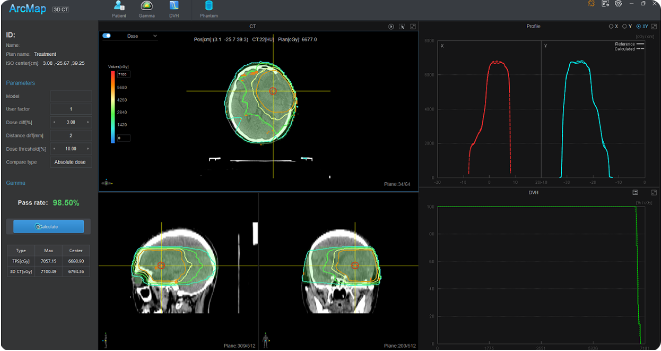

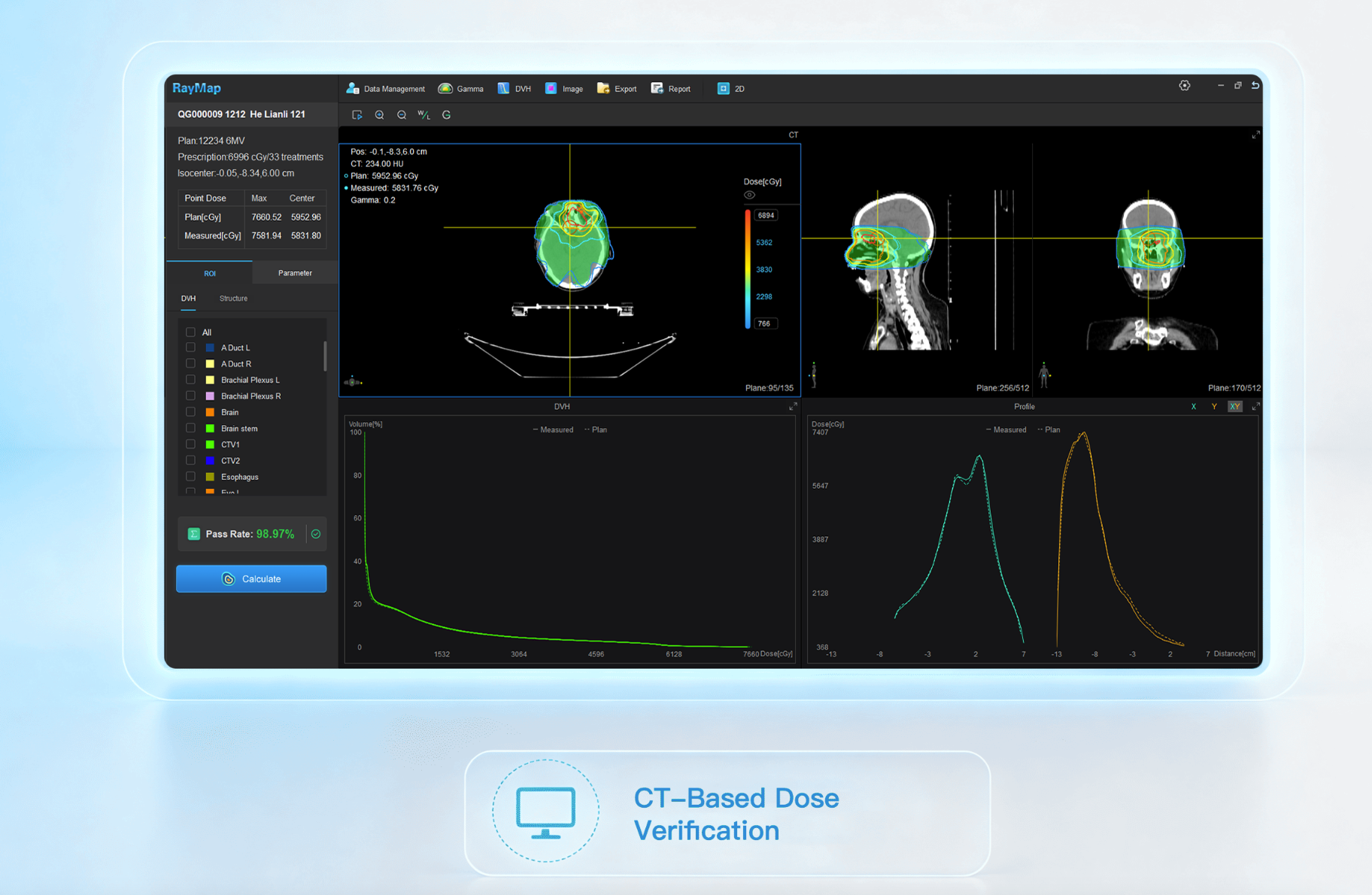

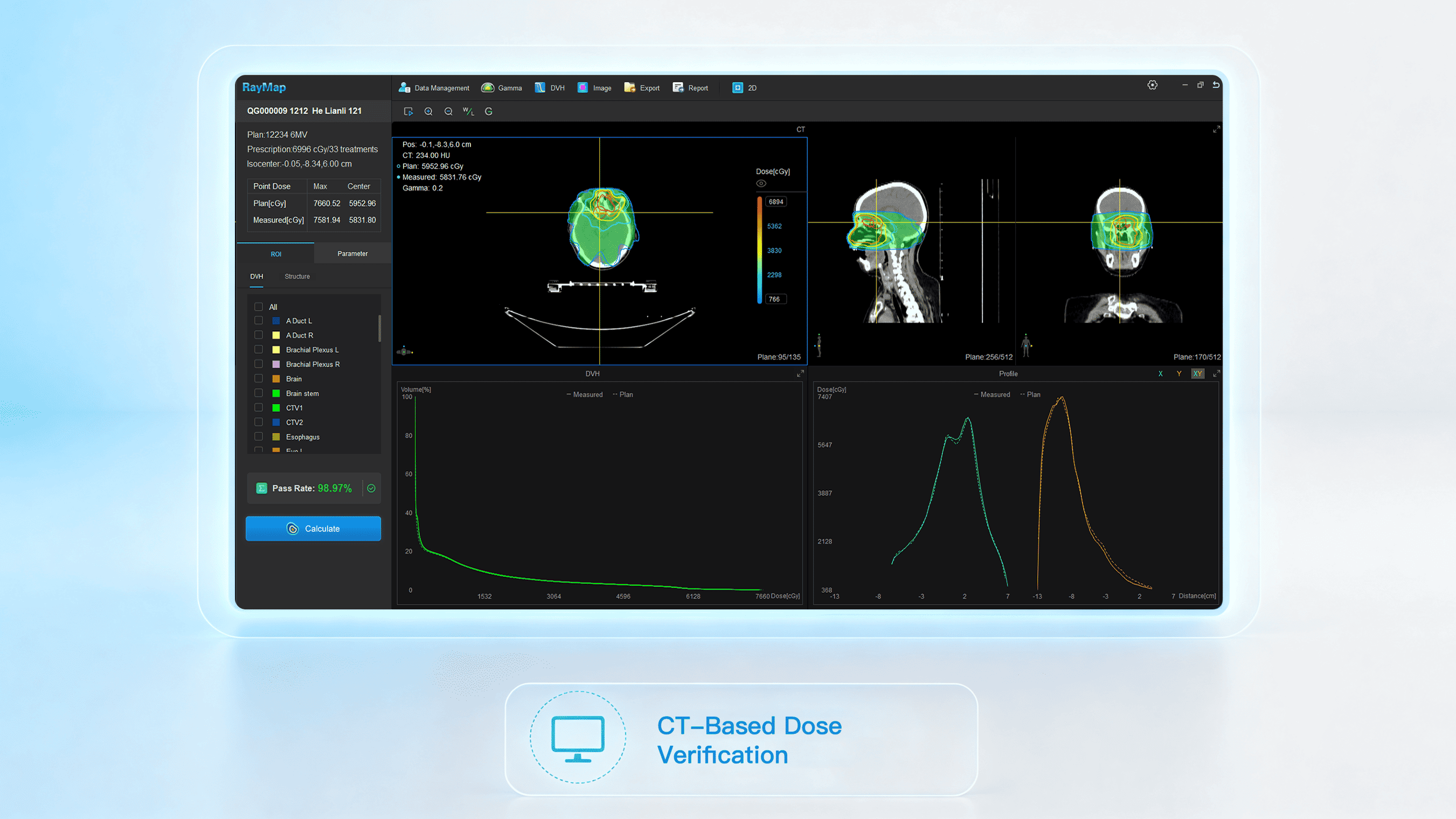

and CT-based 3D dose verification, displaying the 3D dose distribution reconstructed onto the patient’s CT image.
Technical Parameters
-
Detector TypeIonization Chamber
-
Detector Quantity1764
-
Detector Volume0.094cc
-
Nominal Sensitivity3.6nc/Gy ± 0.2nc/Gy
-
Detector Volume (R×H)2.5mm×4.8mm
-
Repeatability≤±0.5%
-
Non-linearity≤±0.5%
-
Field Size21cm×21cm
-
Dimensions(L×W×H)373.4mm×309mm×280mm
-
Weight18.5kg
-
Insert Cavity Radius6.7cm
-
Inner Ring Radius9.5cm
-
Outer Ring Radius10.5cm
-
MaterialPMMA
