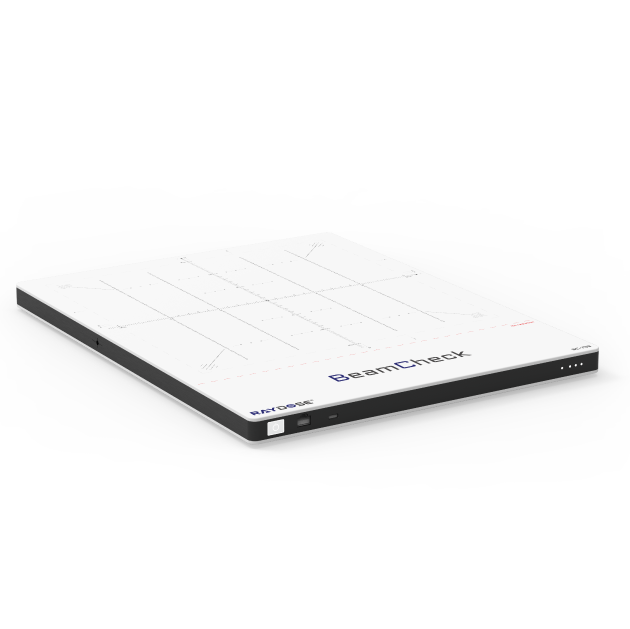

BeamCheck

LINAC Performance Testing Panel

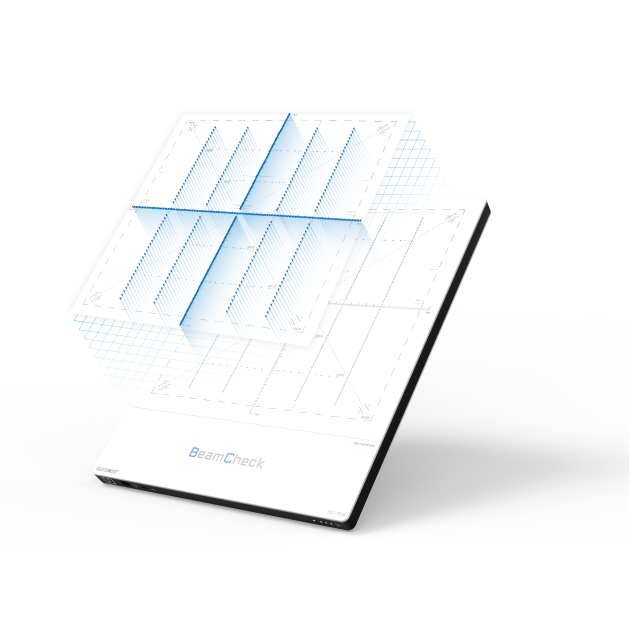

BeamCheck employs a dual-layer interleaved array of 759 ionization chambers, providing maximum detection coverage of 31.4 × 31.4 cm. The X/Y-axis chamber spacing is 2 mm, complemented by four dedicated detection columns for MLC monitoring with 2.5 mm chamber spacing. Built-in battery with automatic temperature/pressure compensation, integrated with XBeam for automated measurement and protocol-based evaluation, efficiently completing daily/weekly/monthly LINAC QA.

Compatible with

Periodic QA for LINACs:

Daily

Weekly

Monthly

Selected annual checks
Standards:

AAPM TG-142

TG-198

Standard For Testing of Quality Control in Medical Electron Linear Accelerator (WS 674-2025)
Troubleshooting:

Dosimetric issues

Mechanical issues

Commissioning / post-service verification:

New-machine acceptance of mainstream LINAC models

Verification after major overhaul or upgrade
Routine maintenance / tuning:

MLC calibration

Beam-parameter adjustments

Energy

Flatness

Symmetry

Video

Key Features

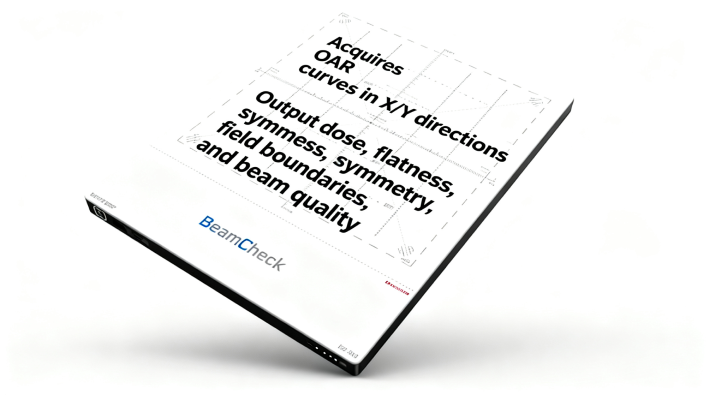

Multi-Metric Coverage In a Single Beam

Simultaneously acquires OAR curves in X/Y directions during a single beam delivery, automatically analyzing periodic QA metrics including output dose, flatness, symmetry, field boundaries, and beam quality—simple and efficient.

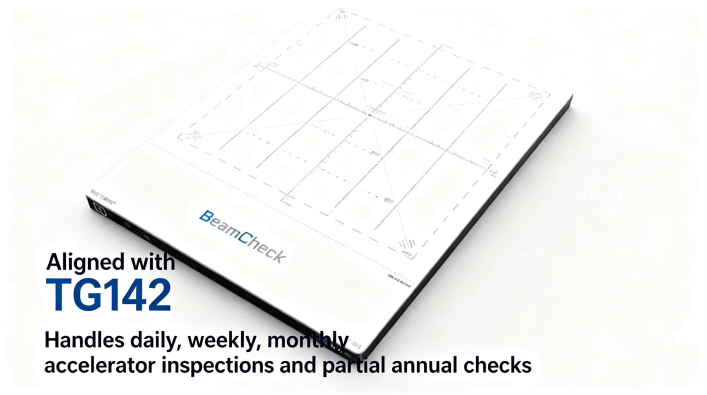

Single-Device Coverage for Full Cycle Needs

Aligned with TG142 radiotherapy quality control standards, one device handles daily, weekly, monthly accelerator inspections and partial annual checks, directly replacing the multi-device setup of “morning checker + monthly check matrix + annual check water tank”.

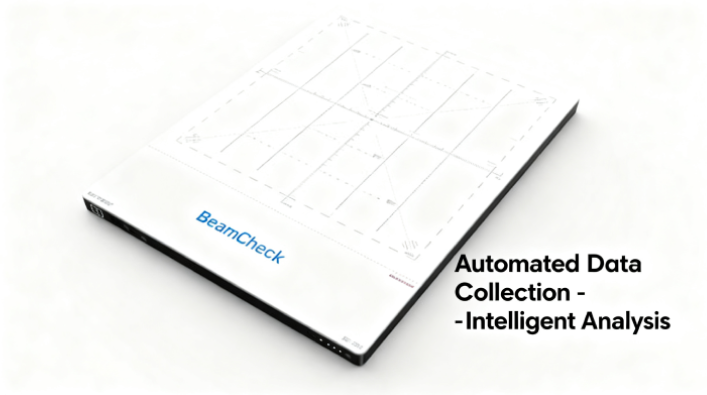

Fully Automated Workflow

Built-in battery eliminates power constraints, enables rapid positioning, and automatically identifies dose anomalies or mechanical faults through “automatic data collection - intelligent analysis and diagnosis”.

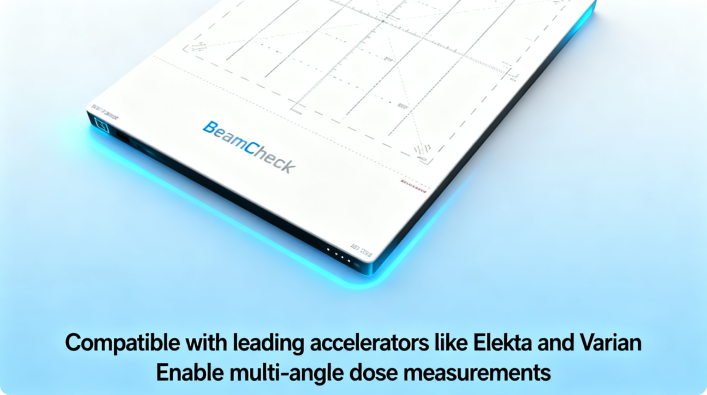

Compatibility with Mainstream Models and Multi-Angle Scenarios

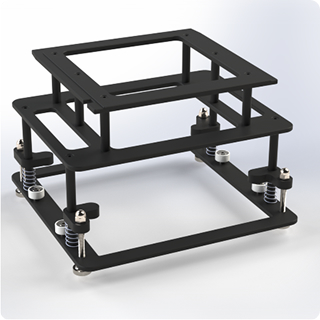

The head-mounted accessory is compatible with leading accelerators like Elekta and Varian. It can be suspended beneath the head and rotate 360° with the gantry, enabling multi-angle dose measurements.

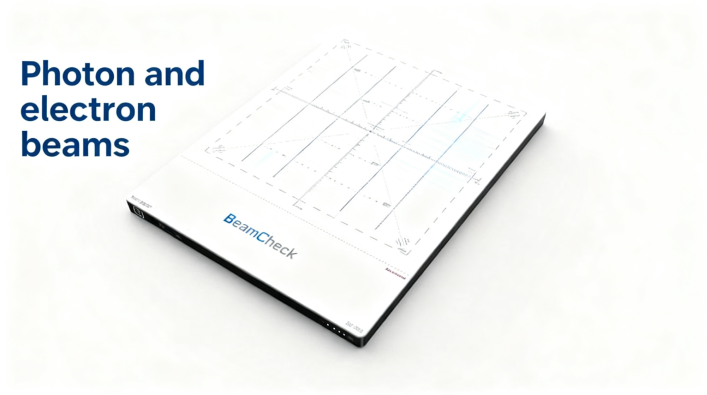

Energy Characteristic Analysis

Calculates energy characteristic parameters for photon and electron beams, effectively verifying radiation energy stability.

QA Coverage

Dosimetric:

Dose:Output (including stability), flatness, symmetry

Field geometry:Field size, center, edges, penumbra

MLC dosimetry:Leaf-position accuracy (up to 1 mm)

Beam quality:Photon PDD20/10; electron R50

Mechanical:

MLC & collimator:Accuracy check of the collimator angle at 45° rotation; jaw position indication.

Isocenter & lasers:Crosshair centering
