MorningCheck Plus
Multi-Detector Array for Automated LINAC Daily QA and Performance Validation

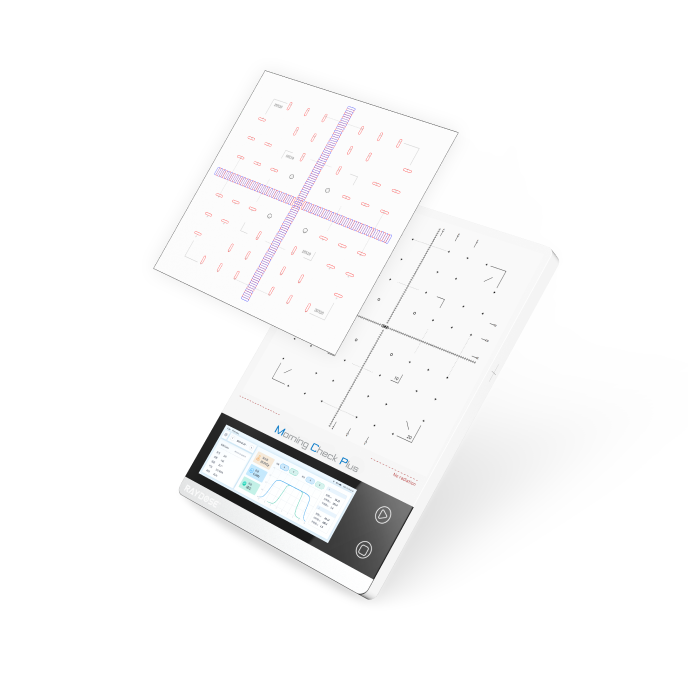

The MC-Plus is a fully automated, multi-functional dosimetry device for medical Linear Accelerators (LINACs). Featuring a matrix of 245 air ionization chambers arranged along the X and Y axes, it is specifically designed for daily quality control, periodic QA, and performance validation. By integrating a high-precision detector array with an intelligent analysis system, it evaluates multiple critical parameters in a single beam delivery.
Compatible with
-
Periodic QA for LINACs:
- Rapid daily, weekly, and monthly quality control procedures
- Single-irradiation evaluation of output, flatness, symmetry, field size, and light/radiation field coincidence
-
LINAC Troubleshooting:
- Battery-powered setup for multi-dimensional data acquisition without external cables
- Automatic localization of dosimetric or mechanical anomalies to improve maintenance efficiency
-
Commissioning and Post-Repair Validation:
- Baseline performance verification for new installations or after major component replacements
- Verification of core beam metrics against international acceptance standards
Video
Key Features
Fully Automated Analysis Workflow

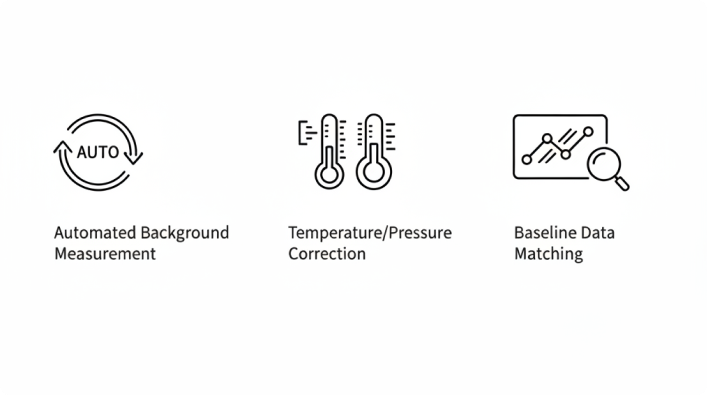

The system features automated background measurement, temperature/pressure correction, and baseline data matching. This end-to-end automation quickly identifies anomalous parameters and generates comprehensive reports, significantly minimizing manual intervention and potential human error.
High-Density Precision Detector Array

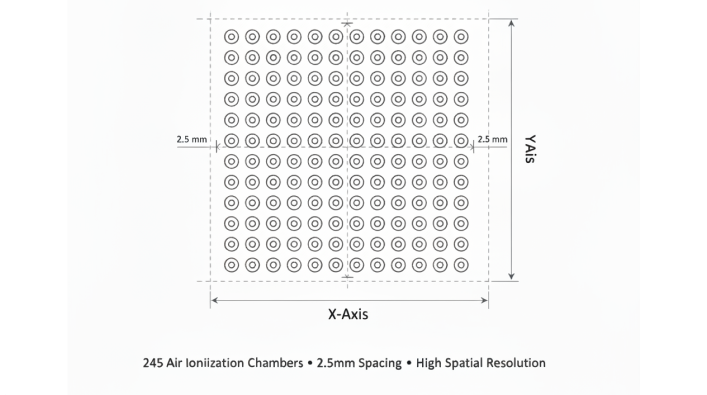

Equipped with 245 air ionization chambers spaced at 2.5mm intervals, the matrix provides exceptional spatial resolution across the X and Y axes. Advanced interpolation algorithms ensure a measurement precision of up to 1mm, providing high-fidelity beam profiling for critical assessments.
Long-Lasting Endurance and Portability

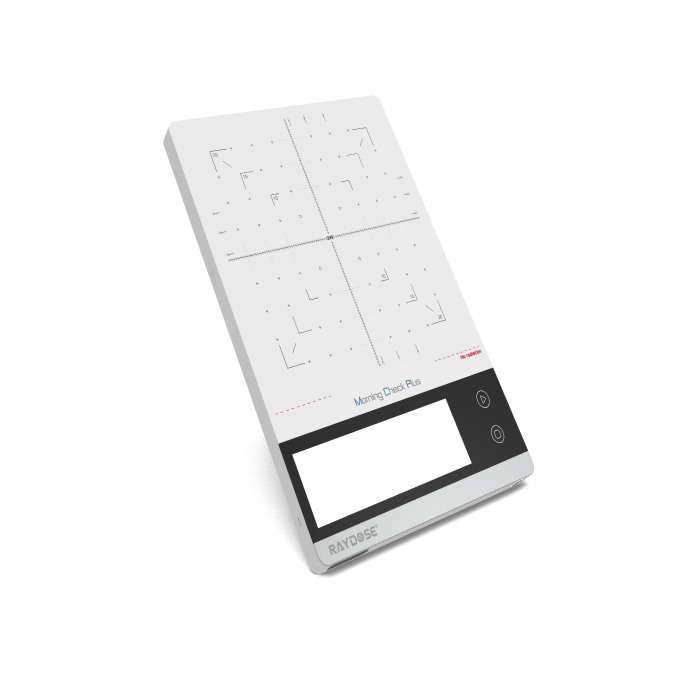

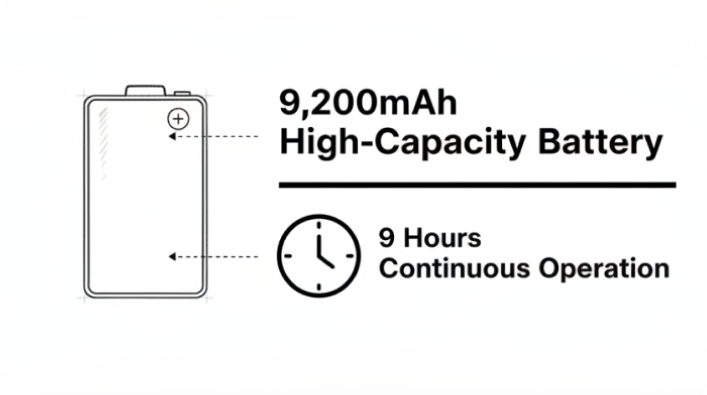

The integrated 9,200mAh high-capacity battery provides up to 9 hours of continuous operation, supporting power-free setup and multi-angle measurements. Its ultra-thin 20mm profile and lightweight 3.5kg design make it easy to mount for gantry-rotation checks.
Intelligent Touchscreen and Seamless Connectivity

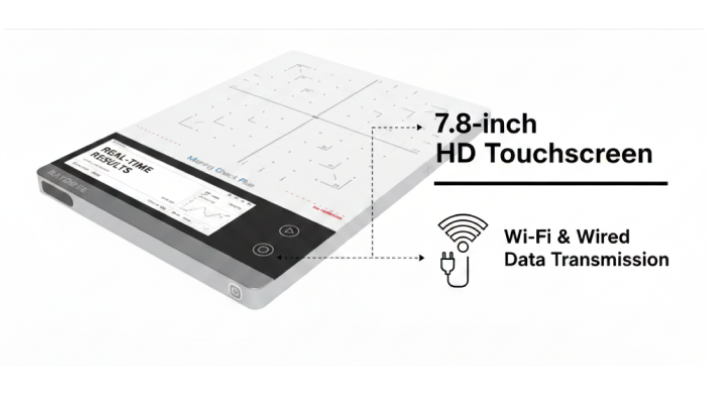

The device features a 7.8-inch HD touchscreen for real-time results and intuitive management of multiple LINACs. It supports both Wi-Fi and wired data transmission, allowing clinical staff to monitor measurements and baseline matching instantly on a remote workstation.
QA Coverage
-
Dosimetric:
- Dose: Output (including stability), flatness, symmetry
- Field geometry: Light/Radiation Field Coincidence, Field Center, Field Size
Technical Parameters
-
Detector TypeIonization Chamber
-
Detector Quantity245
-
Field Size24cm×24cm
-
Max Irradiation Area26cm×26cm
-
Sensitive Volume0.051CC
-
Dimensions (L×W×H)392cm×275cm×20cm
-
Detector Spacing2.5mm (Min)
-
Weight3.5kg
-
Energy RangePhotons: 4 to 25 MV;
Electrons: 4 to 22 MeV -
Lithium-Ion Battery's Capacity9200mAh
