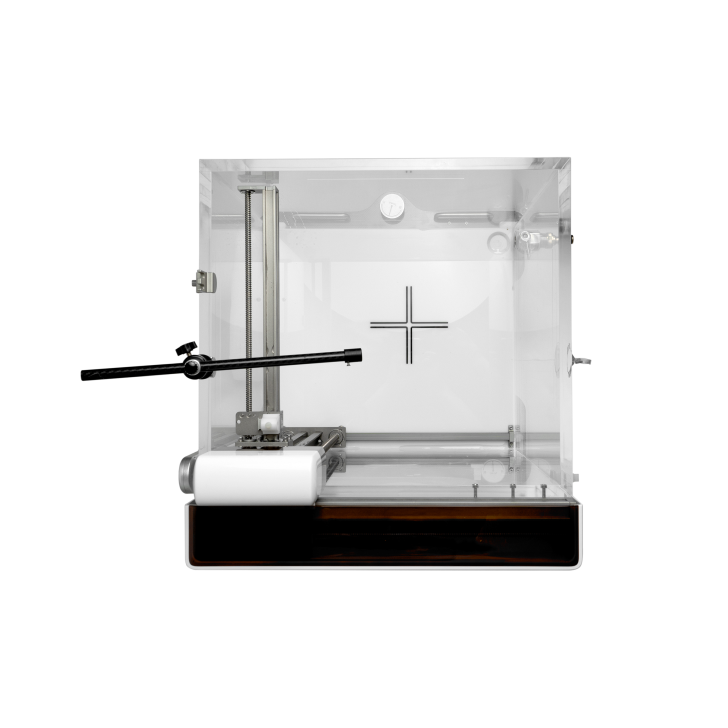

The AS450 is a compact three-dimensional water phantom scanning system designed for beam characterization and radiotherapy quality assurance. Featuring a lightweight structure and high-precision motion platform, the system supports efficient deployment for routine QA, machine performance verification, research, and training applications.
With positioning accuracy up to ±0.1 mm, the AS450 supports comprehensive dosimetric measurements, including Percentage Depth Dose (PDD), beam profiles, Tissue Phantom Ratio (TPR), and point-dose verification. Integration with the XBeam platform enables automated data acquisition, analysis, and reporting.
Compatible with
-
Commissioning and Performance Verification:
- Supports acceptance testing, machine commissioning, post-maintenance verification, and evaluation of key dosimetric parameters.
-
Routine Quality Assurance:
- Supports monthly, quarterly, and annual QA procedures, including monitoring of beam output, beam characteristics, and long-term system performance.
-
Education and Research:
- Suitable for dosimetry studies, radiation physics research, experimental validation, and hands-on training in radiotherapy technology.
Key Features

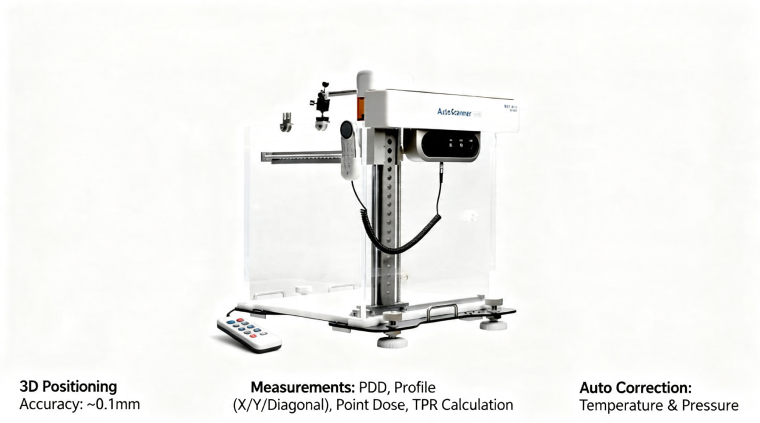

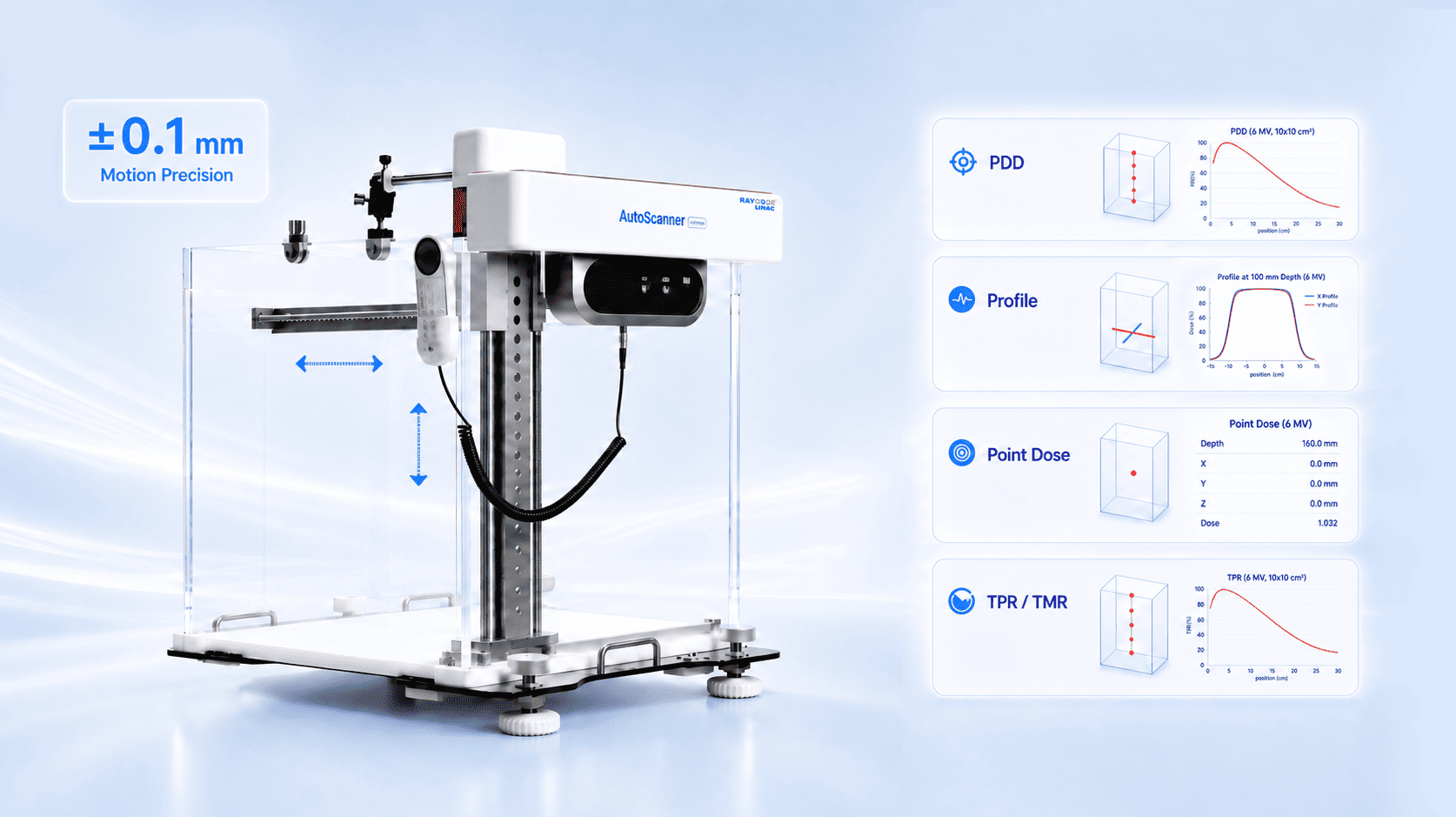

Accurate Measurements
Positioning accuracy up to ±0.1 mm
Supports PDD, beam profile (X/Y/diagonal), point dose, and TPR measurements
Automatic temperature and pressure correction
Supports PDD, beam profile (X/Y/diagonal), point dose, and TPR measurements
Automatic temperature and pressure correction

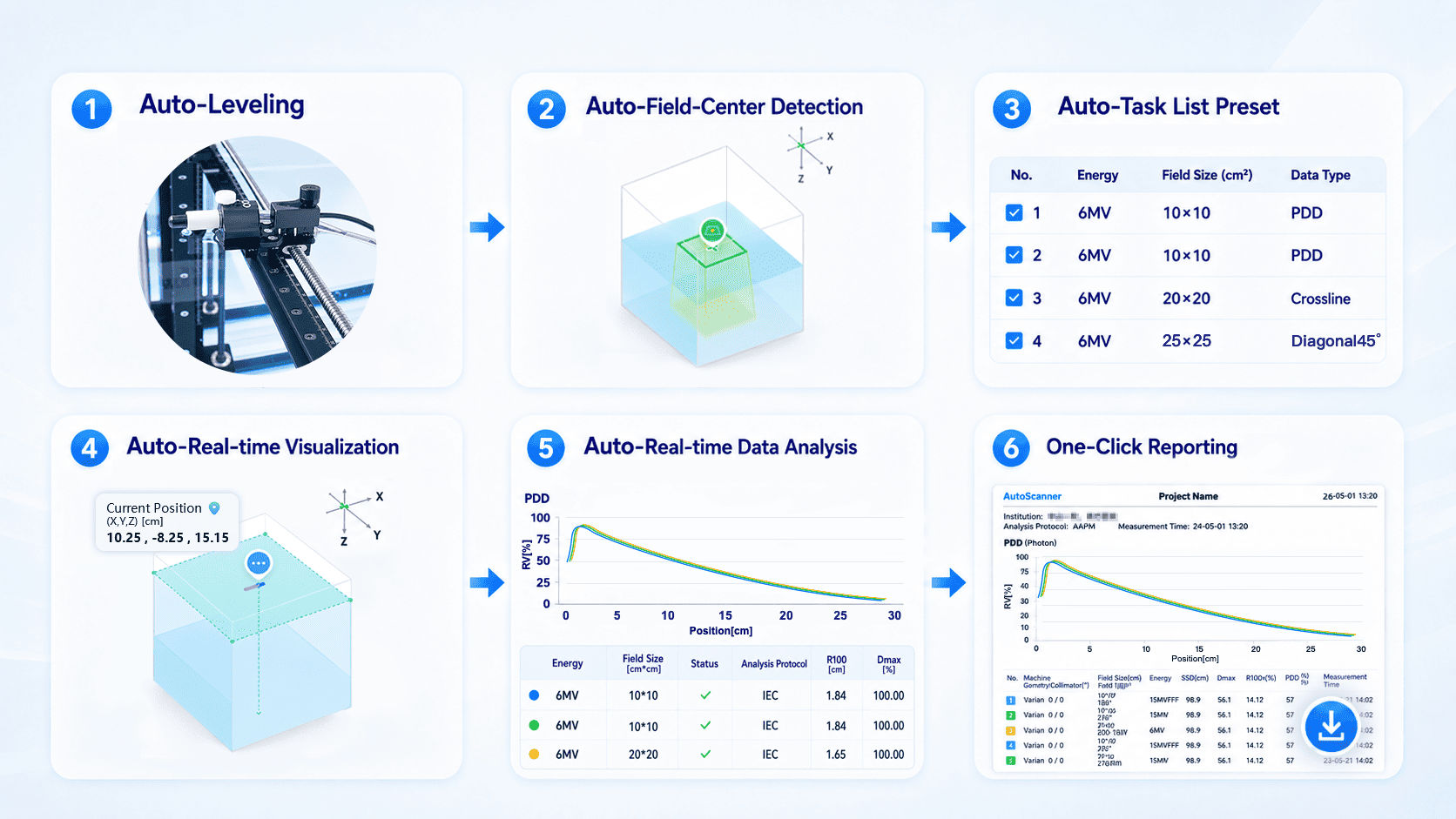

Automated Workflow
Automated scanning and data acquisition
Automated filling and draining process

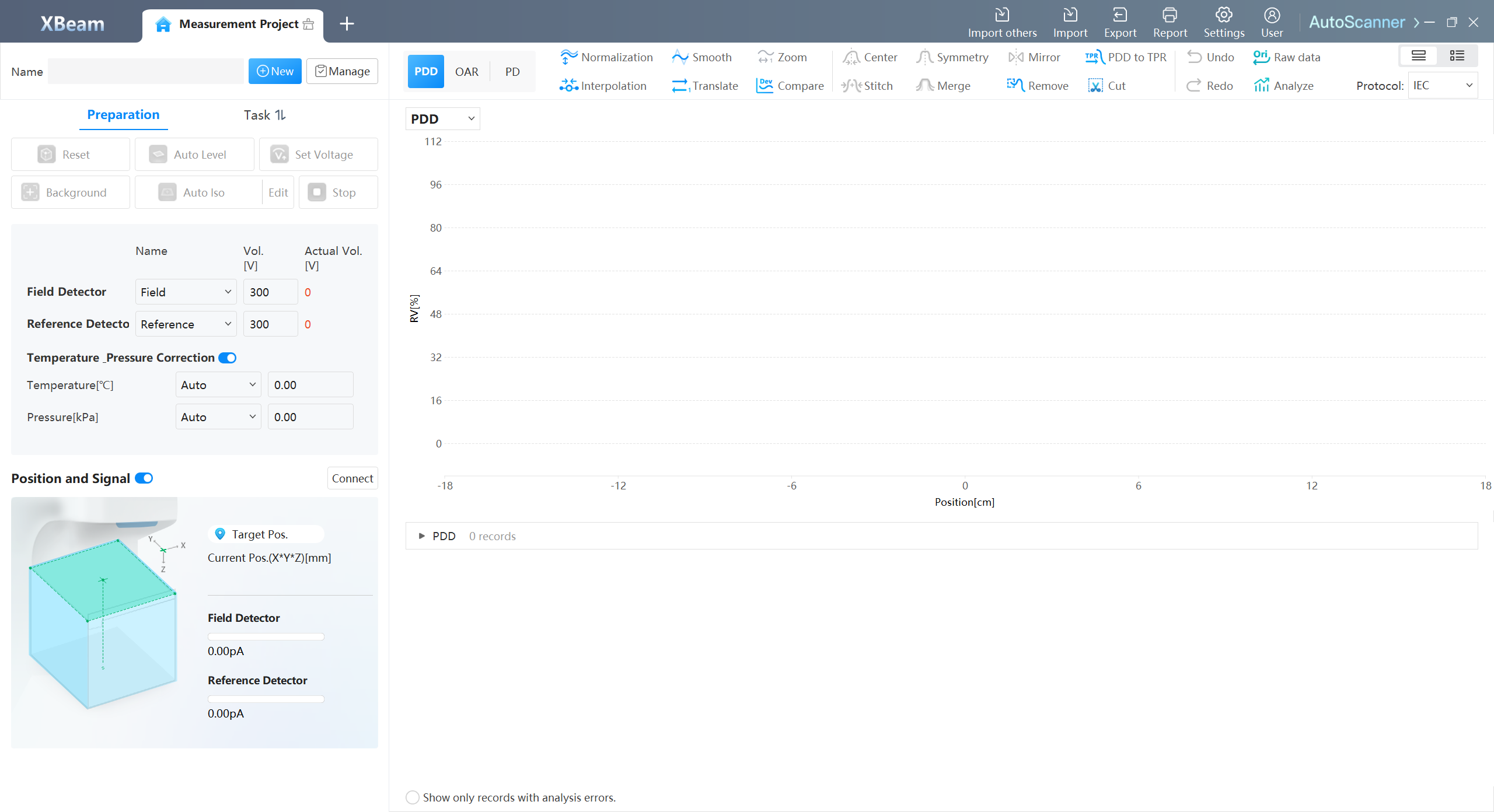

Automated analysis and reporting through XBeam integration
Automated filling and draining process
Automated analysis and reporting through XBeam integration

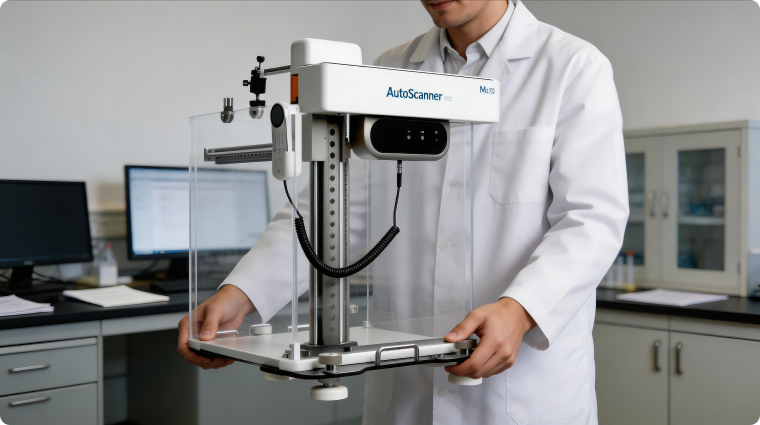

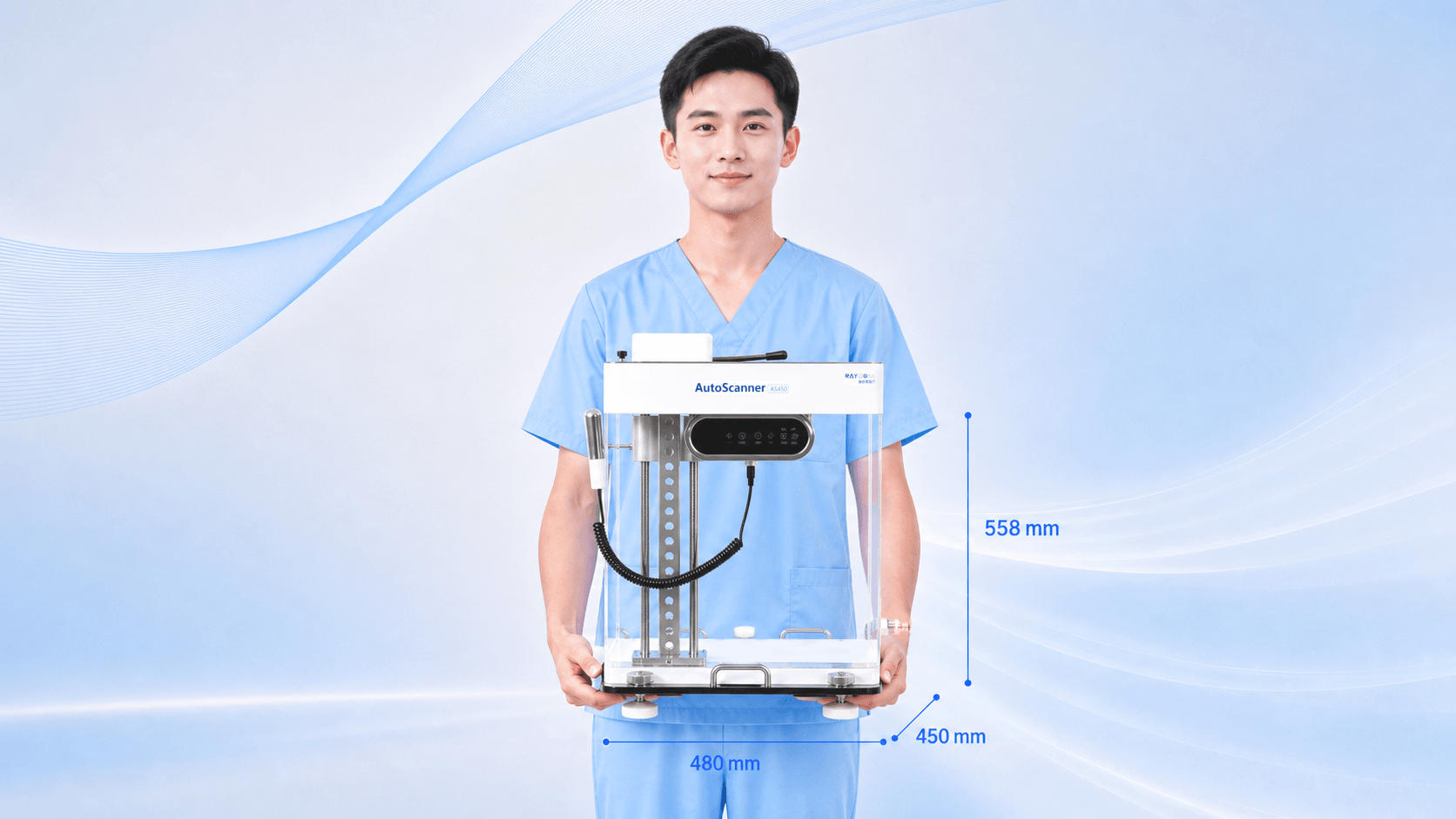

Compact and Portable Design
Lightweight structure for easy handling
Single-person transportation and setup
Suitable for facilities with limited space
Single-person transportation and setup
Suitable for facilities with limited space

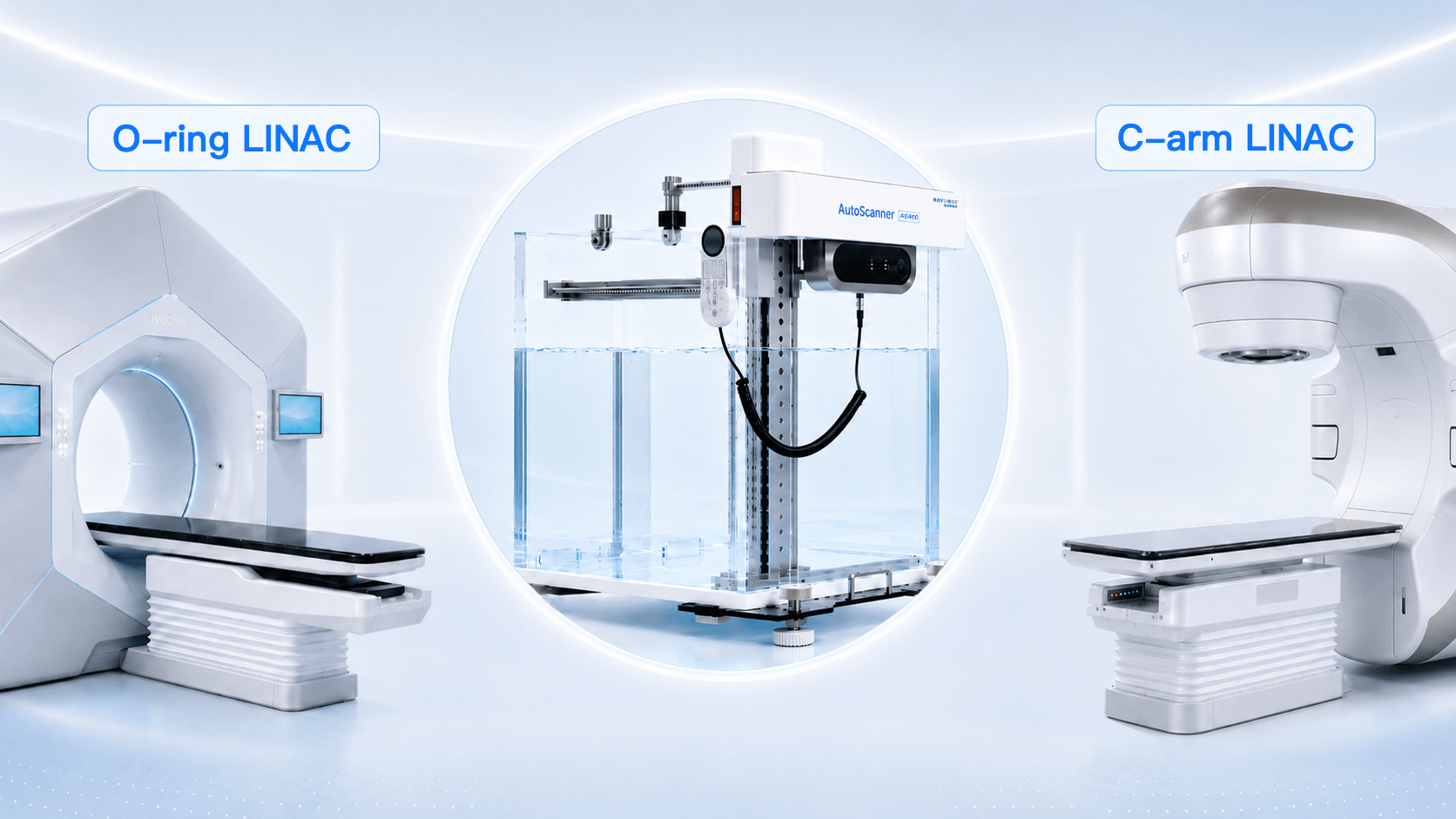

Broad Compatibility
Supports photon and electron beam measurements
Compatible with a wide range of radiotherapy systems
Suitable for commissioning support, routine QA, research, and training
Compatible with a wide range of radiotherapy systems
Suitable for commissioning support, routine QA, research, and training
Technical Parameters
-
AS450:
-
Box External Dimensions (L×W×H)480mm×450mm×558mm
-
Box Internal Dimensions (L×W×H)420mm×380mm×428mm
-
Box Wall Thickness15mm
-
Volume60L
-
Empty Box Weight≤23kg
-
Max Scanning Speed≤25mm/s
-
Max Scanning Range (X/Y/Z)280mm/280mm/300mm
-
Dual Channel Electrometer:
-
Charge2pC-10C (10fC resolution)
-
Current1pA-200nA
-
Long-Term Stability≤±0.5%
-
Repeatability≤±0.5%
